OVTS Serie
OVTS Special Wire-Rope Isolators
Special wire-rope isolation configurations for equipment protection, with model-specific loading and installation requirements.
Katalog- und Anfrageserie
Technische Modelltabelle
Repräsentative Produktdarstellungen. Bild auswählen, um es in einem neuen Tab zu öffnen.
17 von 17 Modellen
Spalten5
Bis zu 8 Spalten auswählen
- Angebot anfragen

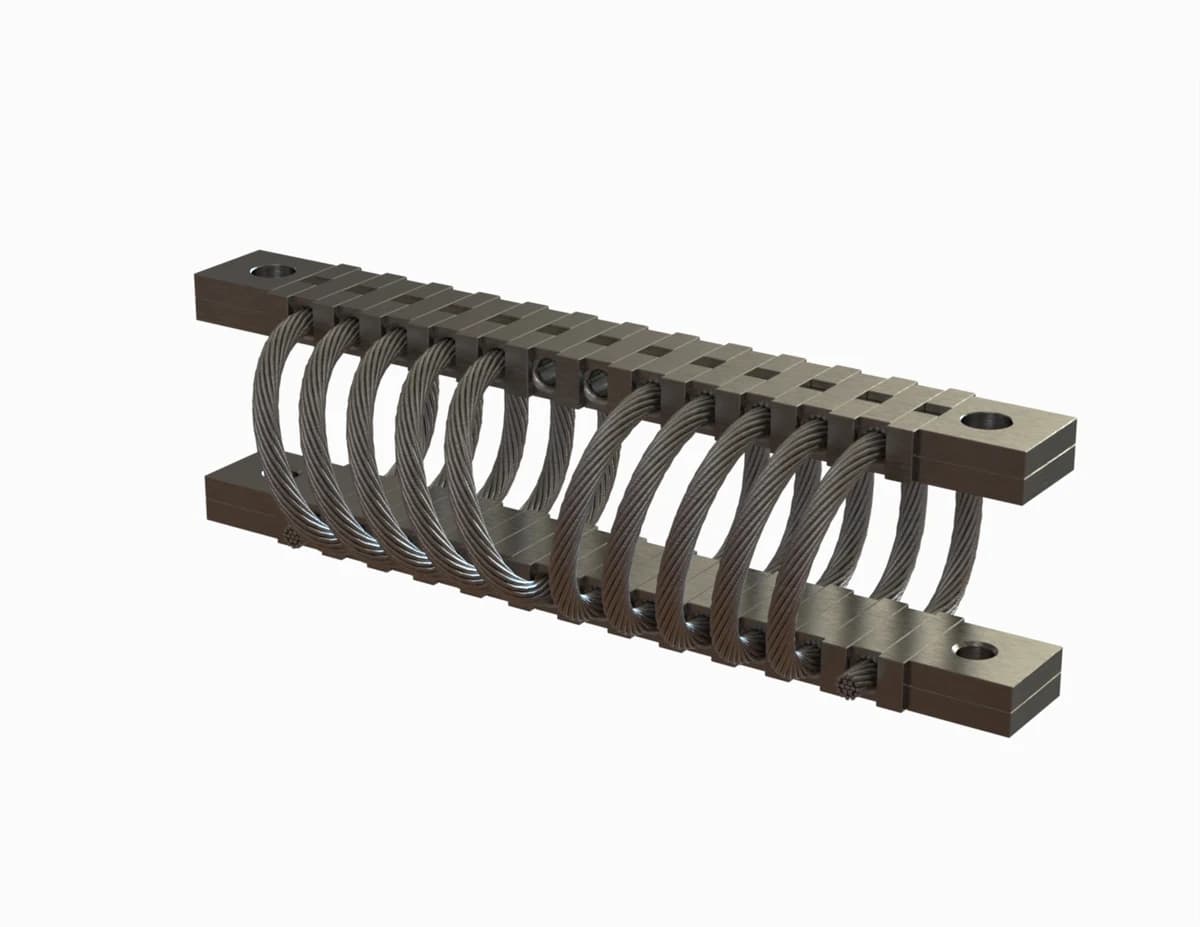

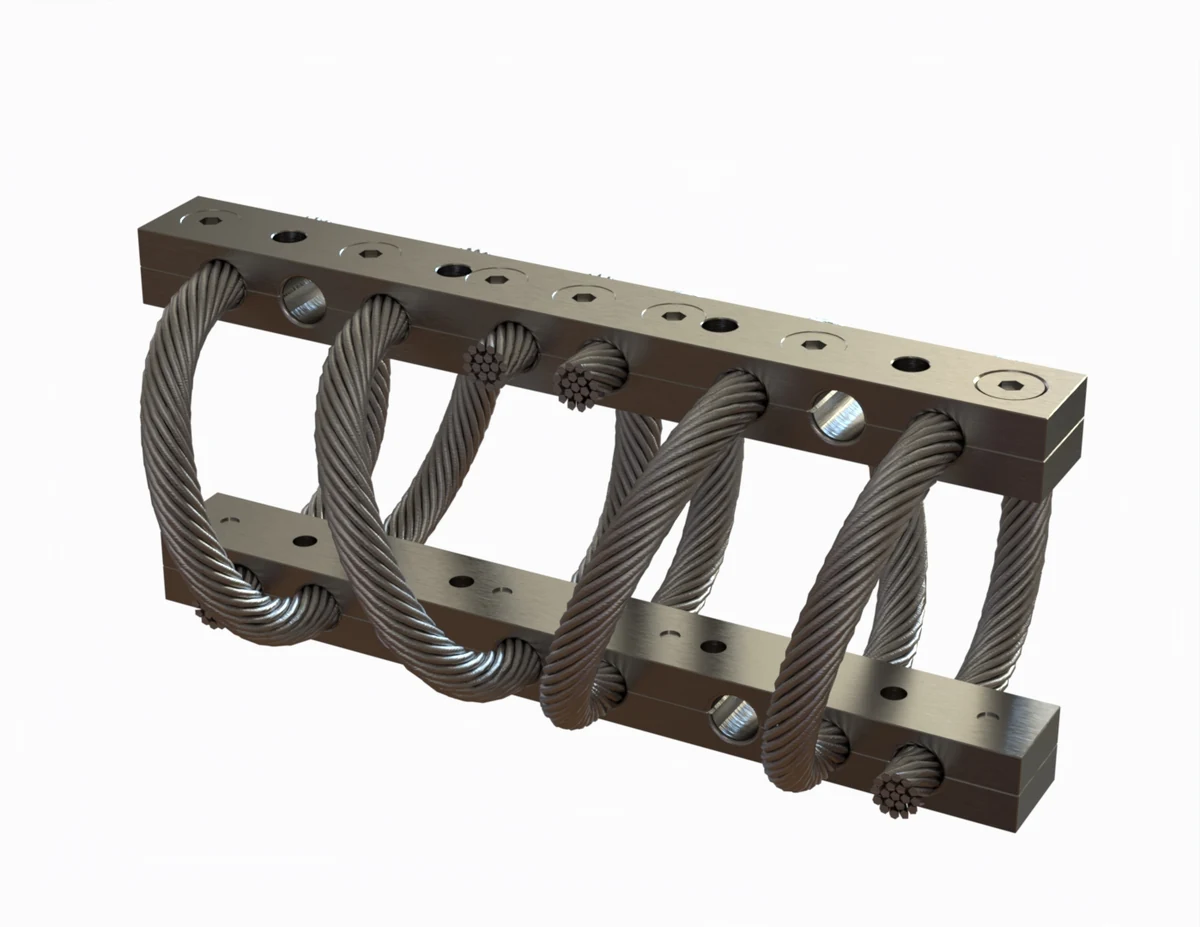

OVTS-5
- Weight (kg)
- 0.16
- Damping ratio (C/Cc)
- ≥0.18
- Dynamic stiffness · X (N/mm)
- 92
- Dynamic stiffness · Y (N/mm)
- 92
- Dynamic stiffness · Z (N/mm)
- 230
- Angebot anfragen

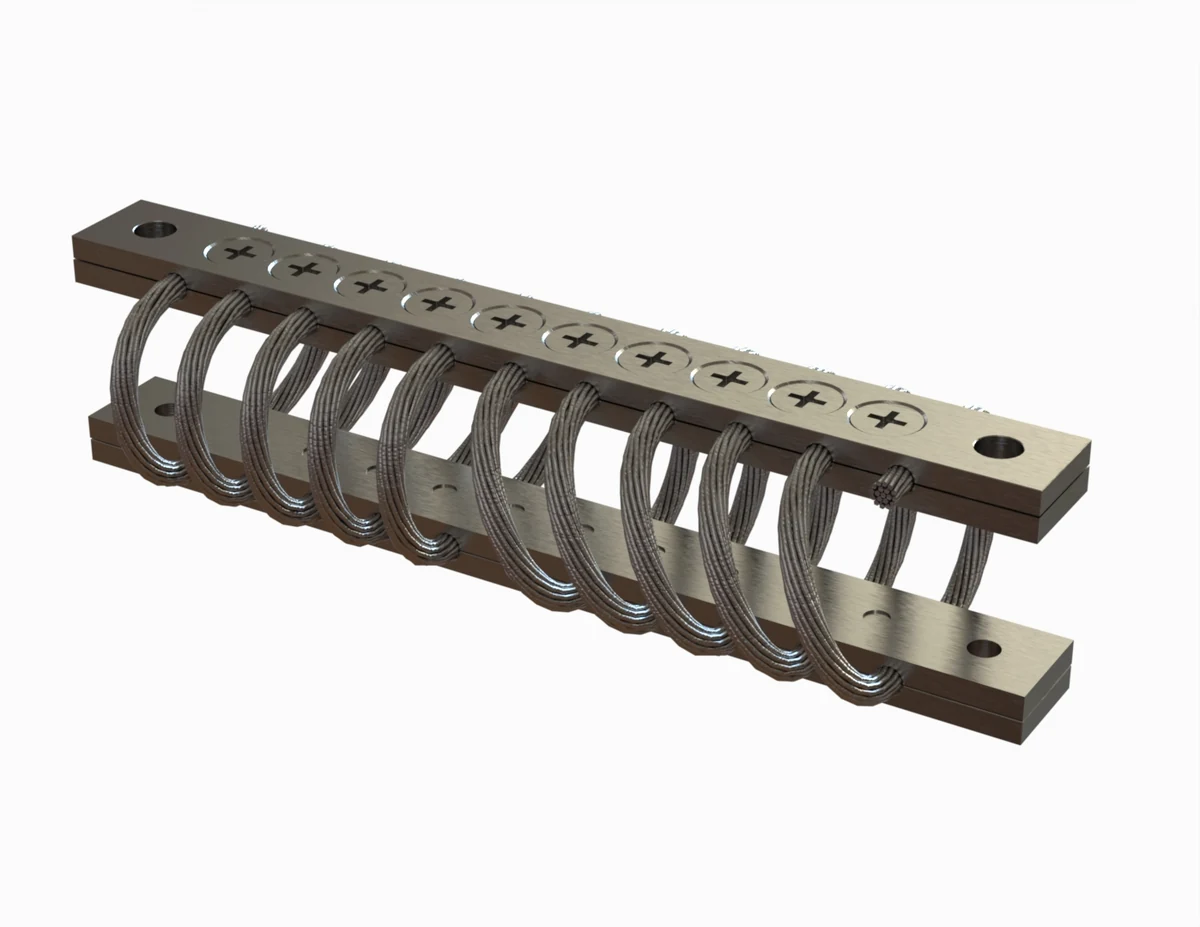

OVTS-6
- Weight (kg)
- 0.185
- Damping ratio (C/Cc)
- ≥0.18
- Dynamic stiffness · X (N/mm)
- 102
- Dynamic stiffness · Y (N/mm)
- 102
- Dynamic stiffness · Z (N/mm)
- 255
- Weight (kg)
- 0.34
- Damping ratio (C/Cc)
- ≥0.18
- Dynamic stiffness · X (N/mm)
- 40
- Dynamic stiffness · Y (N/mm)
- 40
- Dynamic stiffness · Z (N/mm)
- 98
- Angebot anfragen

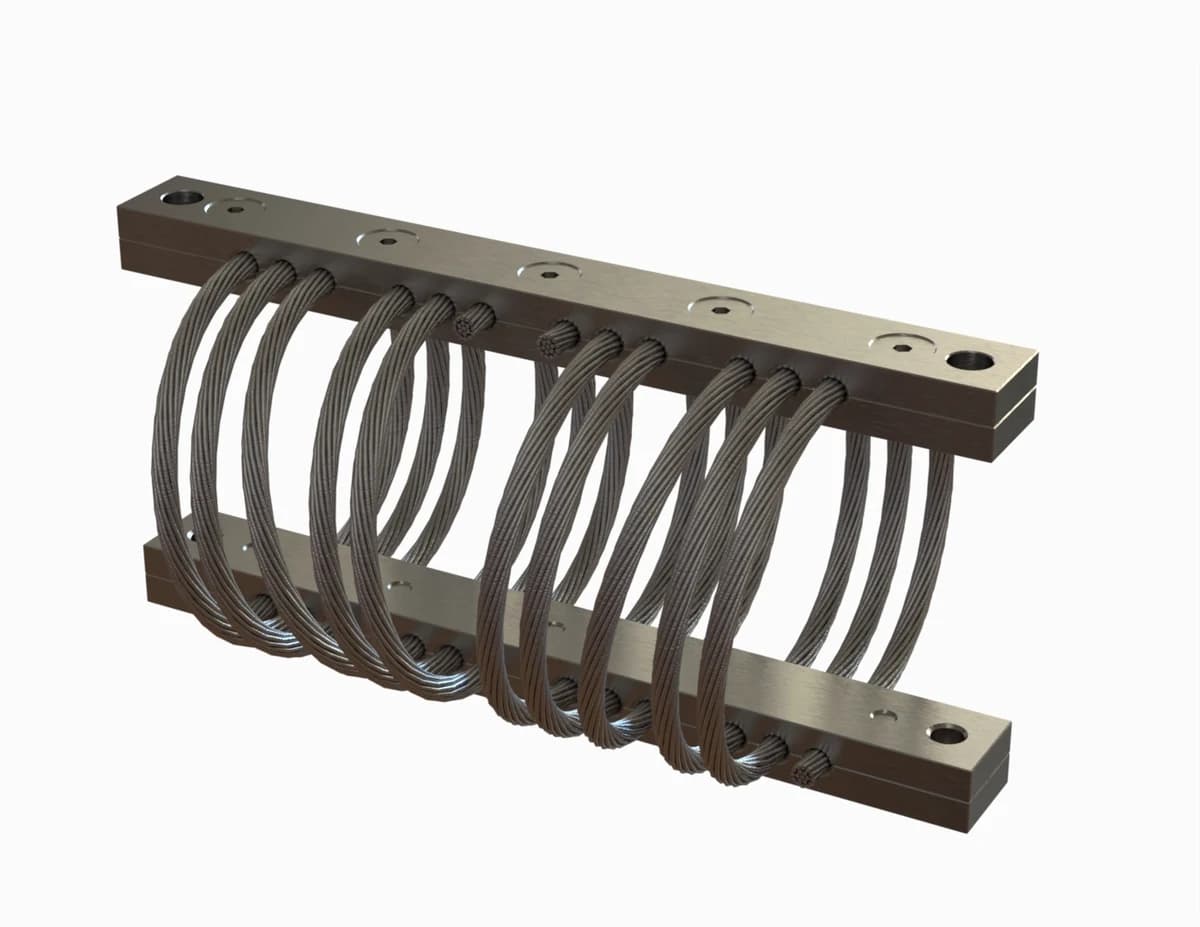

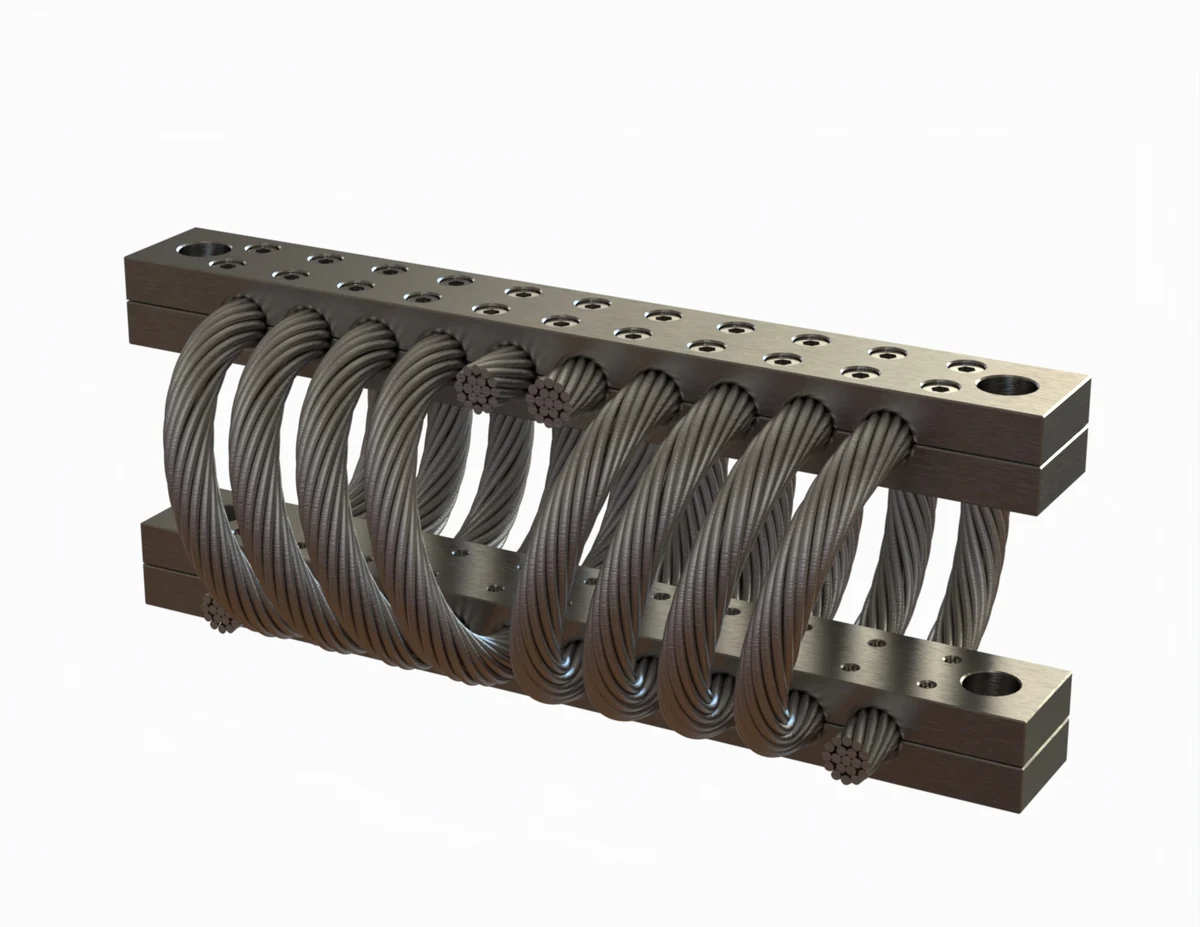

OVTS-20
- Weight (kg)
- 0.415
- Damping ratio (C/Cc)
- ≥0.18
- Dynamic stiffness · X (N/mm)
- 69
- Dynamic stiffness · Y (N/mm)
- 69
- Dynamic stiffness · Z (N/mm)
- 172
- Angebot anfragen

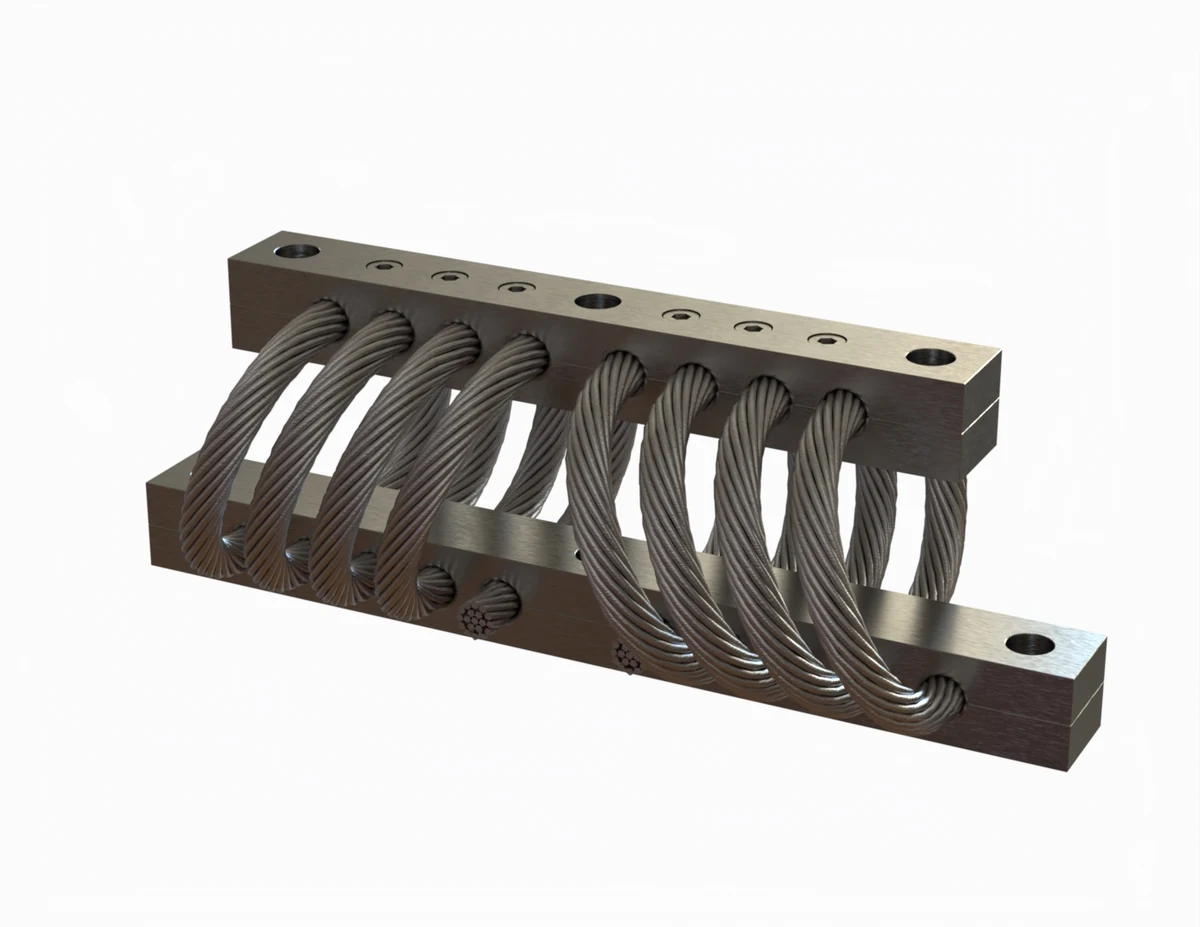

OVTS-30
- Weight (kg)
- 0.77
- Damping ratio (C/Cc)
- ≥0.18
- Dynamic stiffness · X (N/mm)
- 120
- Dynamic stiffness · Y (N/mm)
- 120
- Dynamic stiffness · Z (N/mm)
- 298
- Angebot anfragen

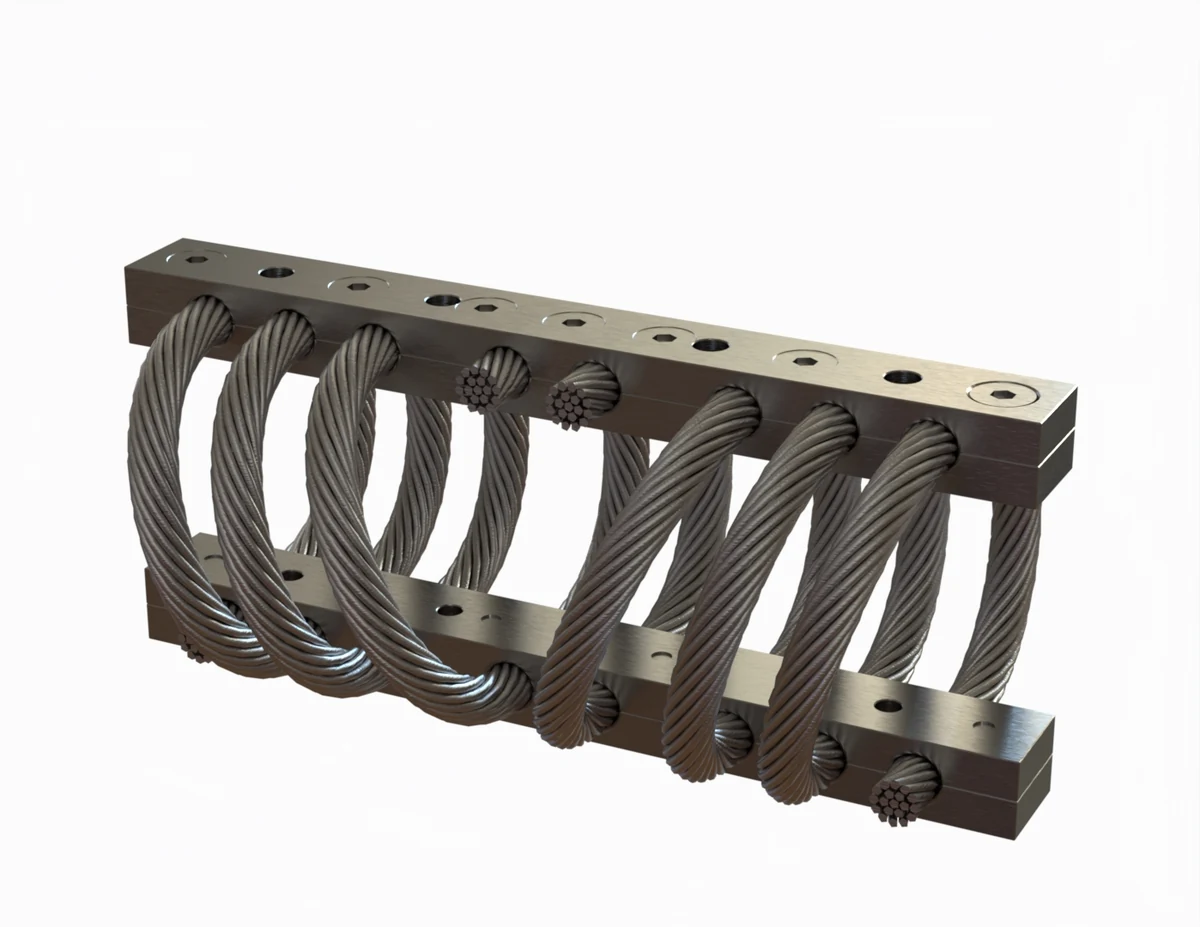

OVTS-50
- Weight (kg)
- 0.815
- Damping ratio (C/Cc)
- ≥0.18
- Dynamic stiffness · X (N/mm)
- 140
- Dynamic stiffness · Y (N/mm)
- 140
- Dynamic stiffness · Z (N/mm)
- 348
- Angebot anfragen

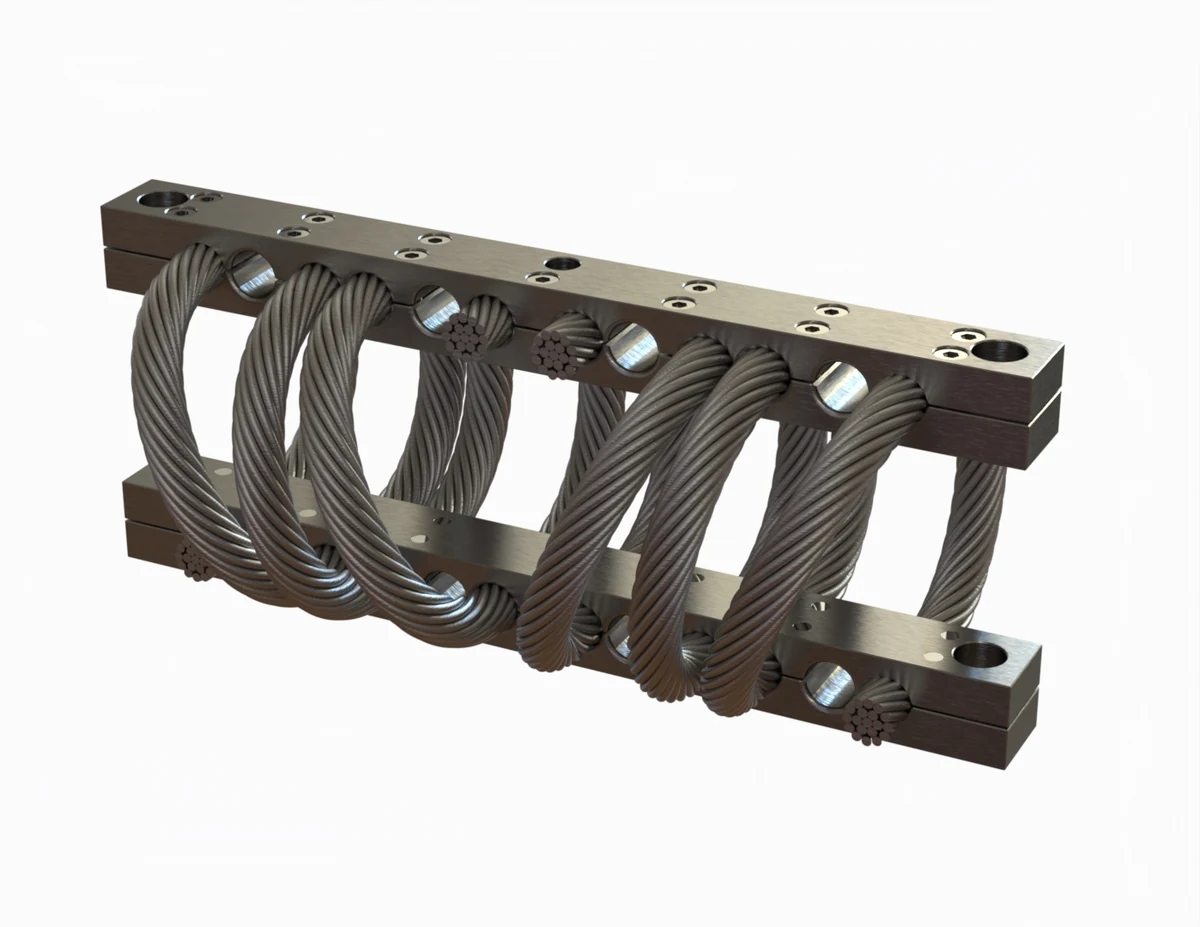

OVTS-60
- Weight (kg)
- 0.91
- Damping ratio (C/Cc)
- ≥0.18
- Dynamic stiffness · X (N/mm)
- 221
- Dynamic stiffness · Y (N/mm)
- 221
- Dynamic stiffness · Z (N/mm)
- 549
- Angebot anfragen

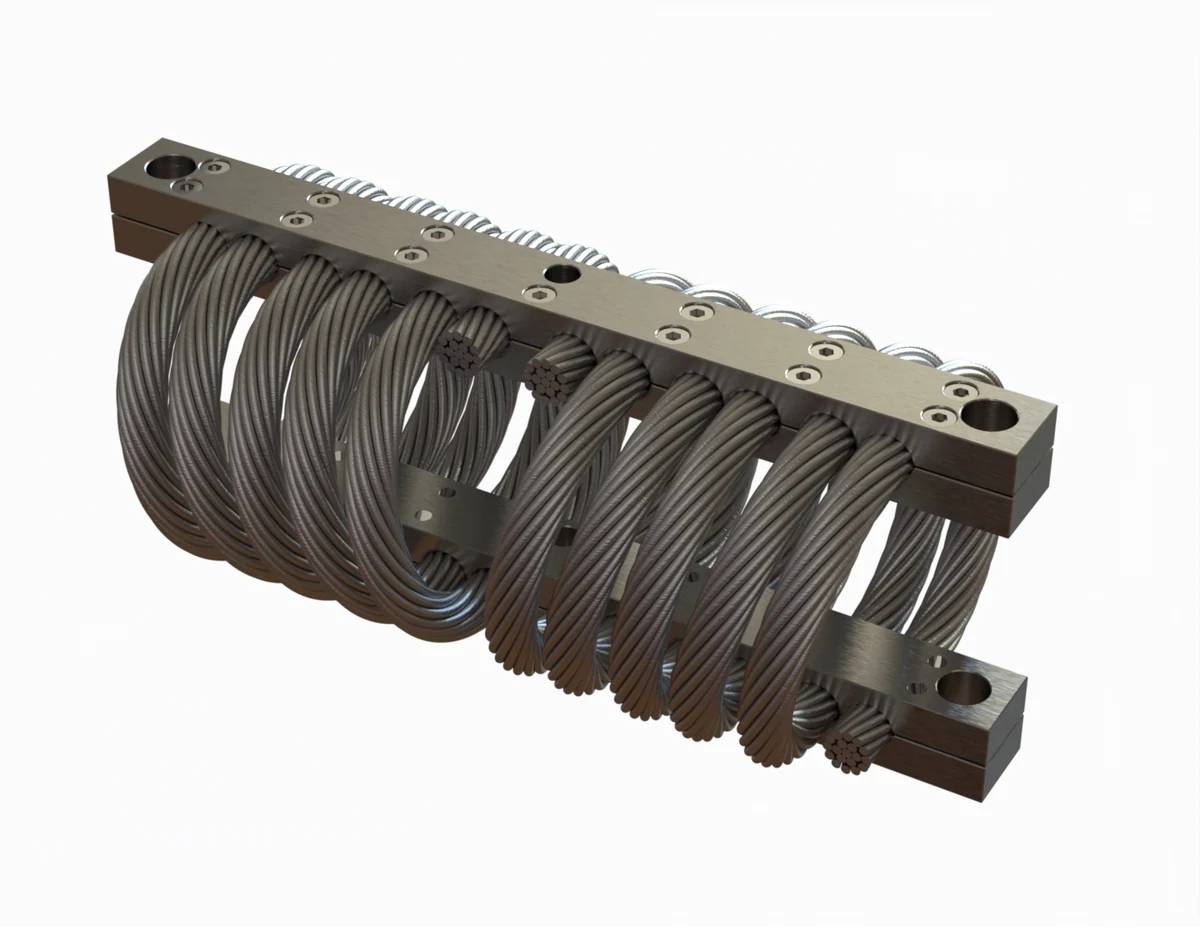

OVTS-80
- Weight (kg)
- 1.5
- Damping ratio (C/Cc)
- ≥0.18
- Dynamic stiffness · X (N/mm)
- 120
- Dynamic stiffness · Y (N/mm)
- 120
- Dynamic stiffness · Z (N/mm)
- 296
- Weight (kg)
- 1.7
- Damping ratio (C/Cc)
- ≥0.18
- Dynamic stiffness · X (N/mm)
- 140
- Dynamic stiffness · Y (N/mm)
- 140
- Dynamic stiffness · Z (N/mm)
- 342
- Angebot anfragen

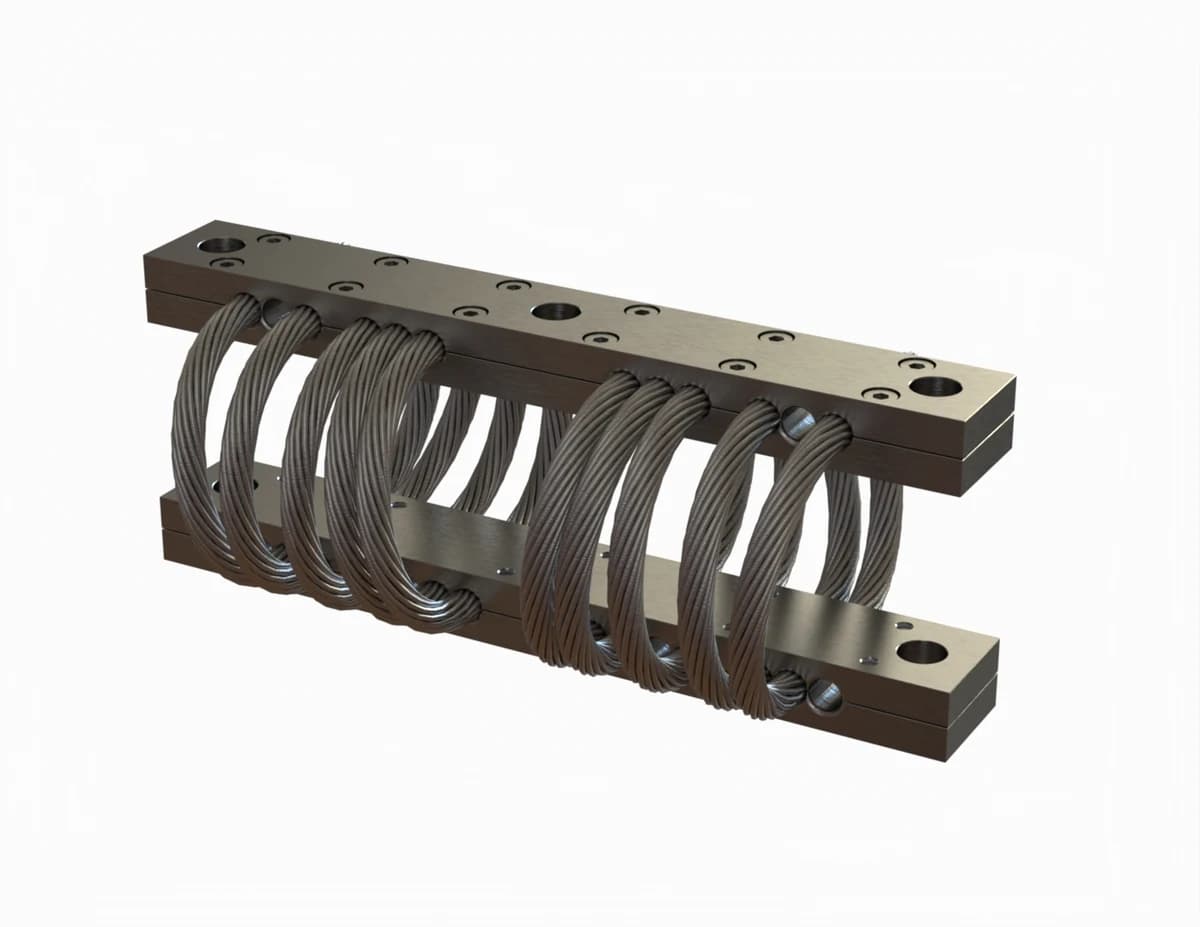

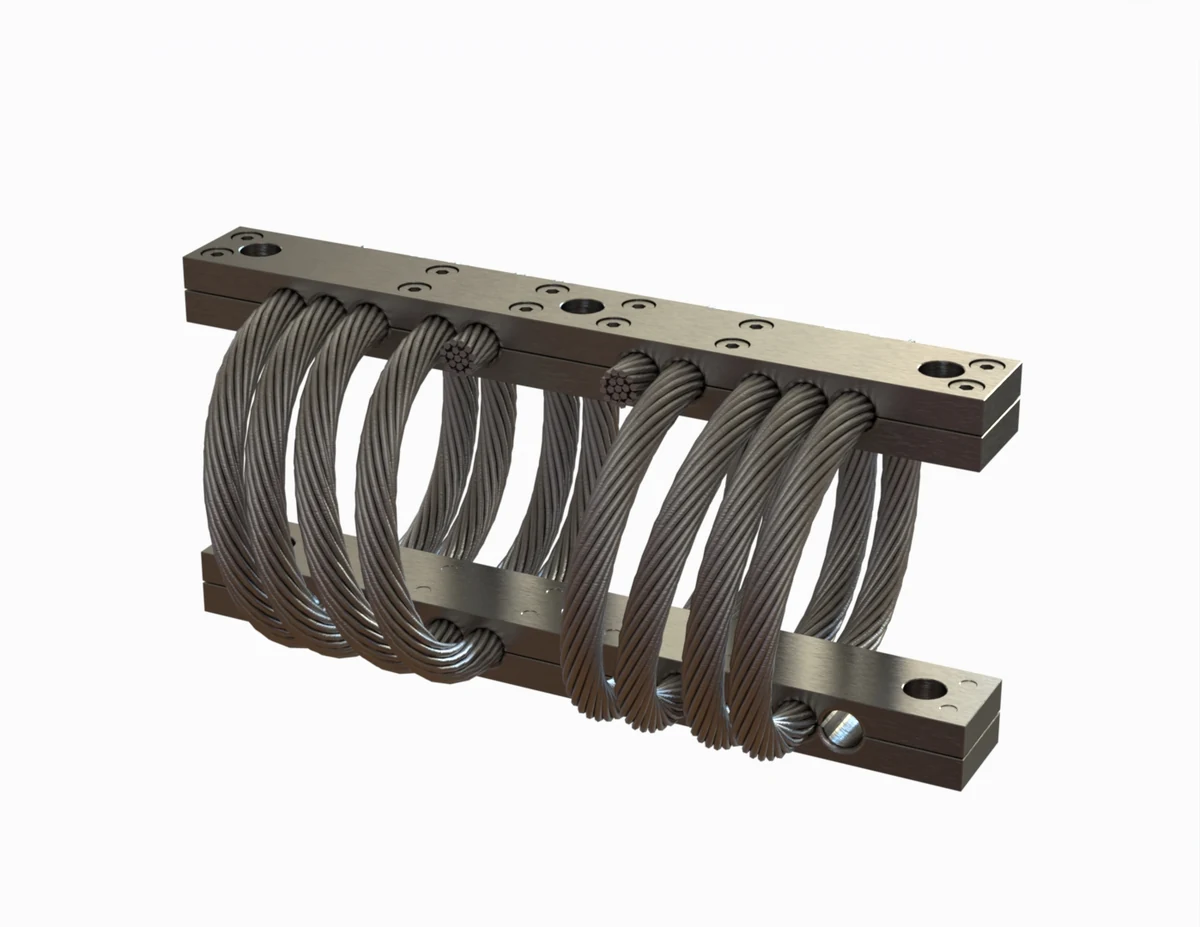

OVTS-150
- Weight (kg)
- 3.5
- Damping ratio (C/Cc)
- ≥0.18
- Dynamic stiffness · X (N/mm)
- 144
- Dynamic stiffness · Y (N/mm)
- 144
- Dynamic stiffness · Z (N/mm)
- 357
- Angebot anfragen

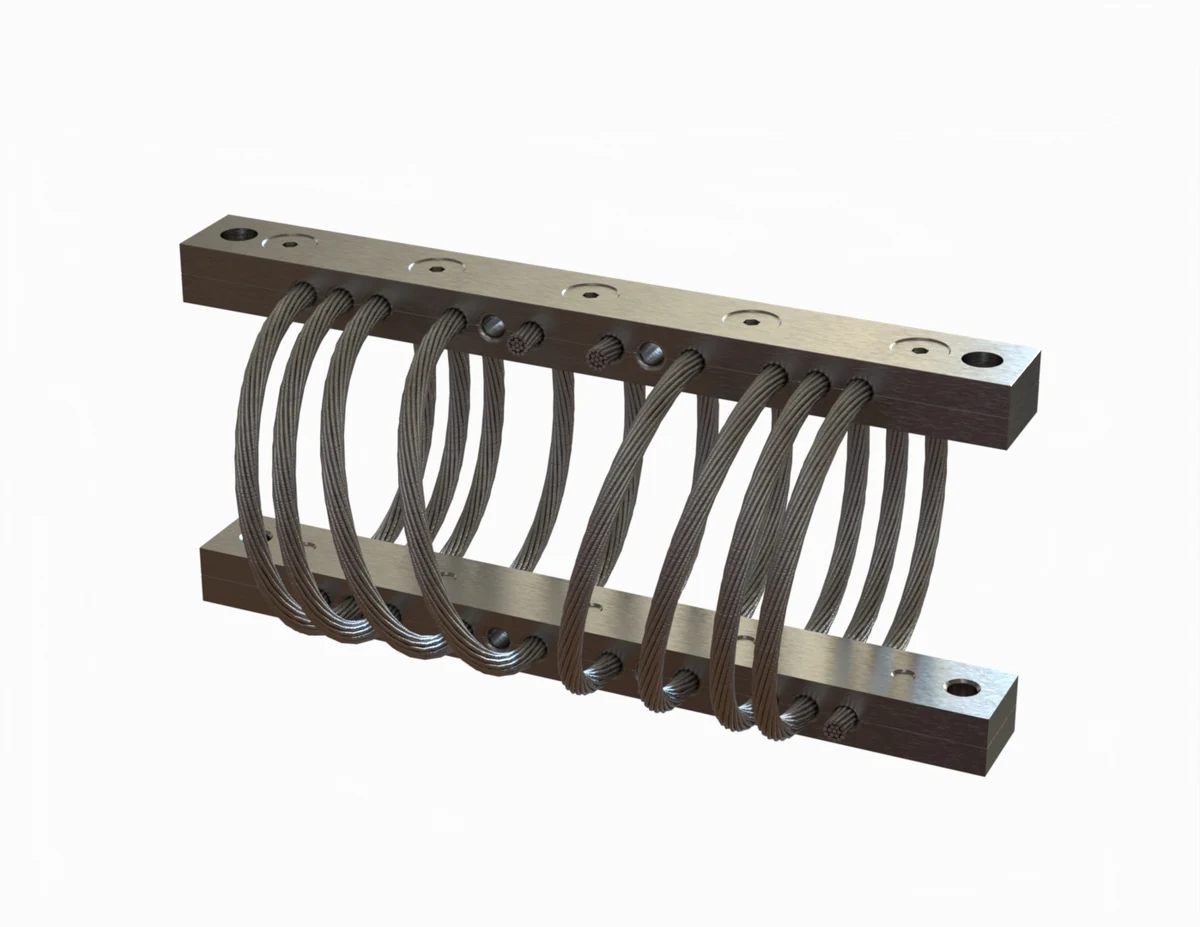

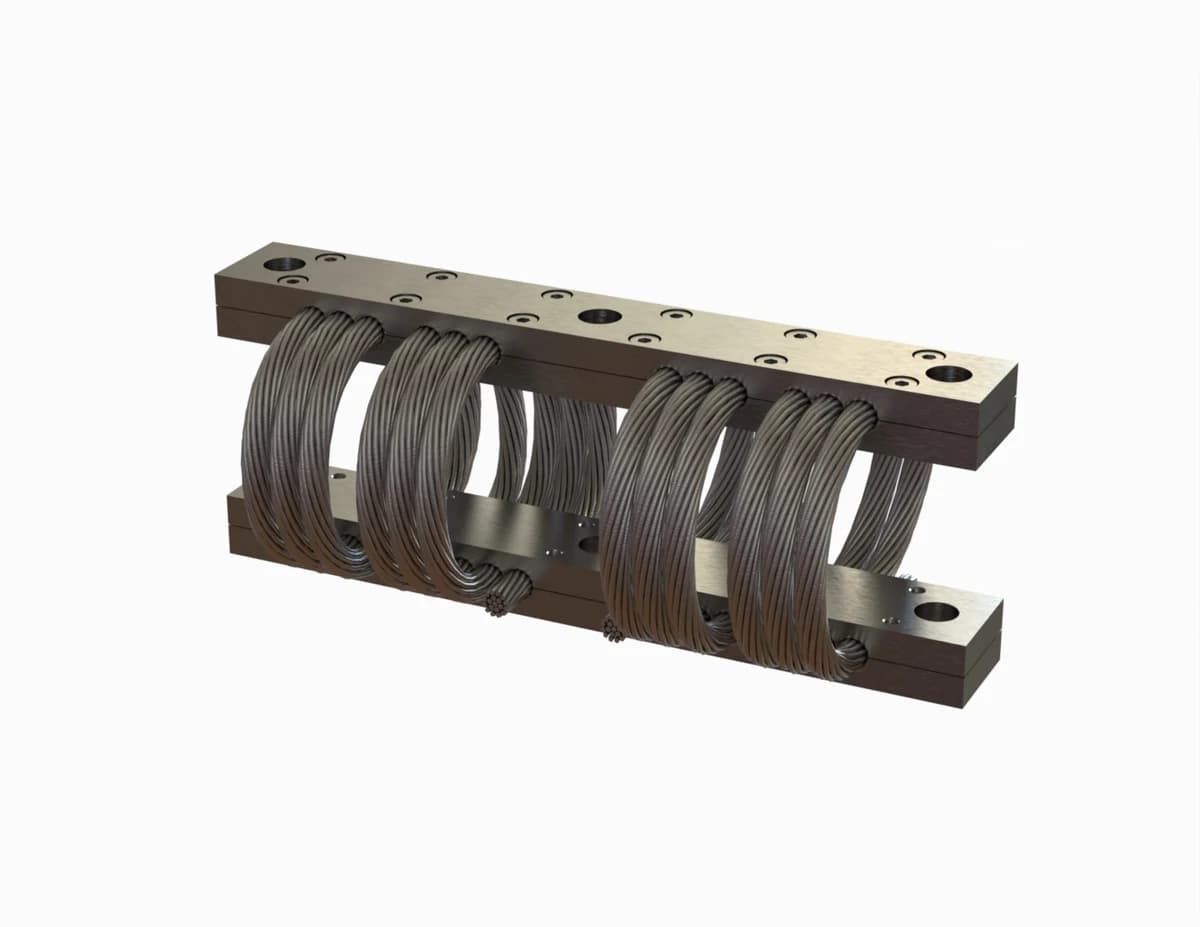

OVTS-200
- Weight (kg)
- 3.8
- Damping ratio (C/Cc)
- ≥0.18
- Dynamic stiffness · X (N/mm)
- 176
- Dynamic stiffness · Y (N/mm)
- 176
- Dynamic stiffness · Z (N/mm)
- 439
- Angebot anfragen

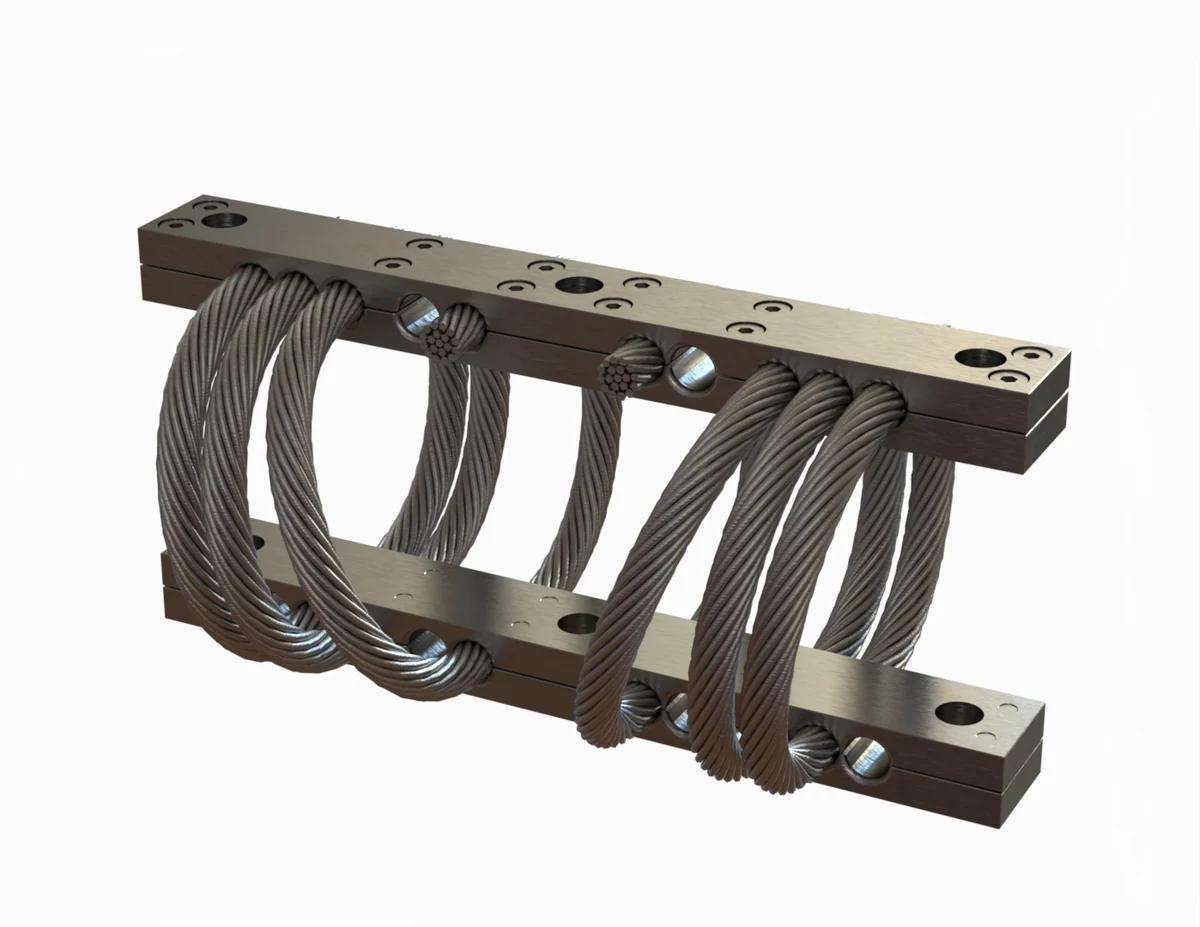

OVTS-300
- Weight (kg)
- 4.5
- Damping ratio (C/Cc)
- ≥0.18
- Dynamic stiffness · X (N/mm)
- 321
- Dynamic stiffness · Y (N/mm)
- 321
- Dynamic stiffness · Z (N/mm)
- 800
- Weight (kg)
- 7.5
- Damping ratio (C/Cc)
- ≥0.18
- Dynamic stiffness · X (N/mm)
- 570
- Dynamic stiffness · Y (N/mm)
- 570
- Dynamic stiffness · Z (N/mm)
- 1418
- Angebot anfragen

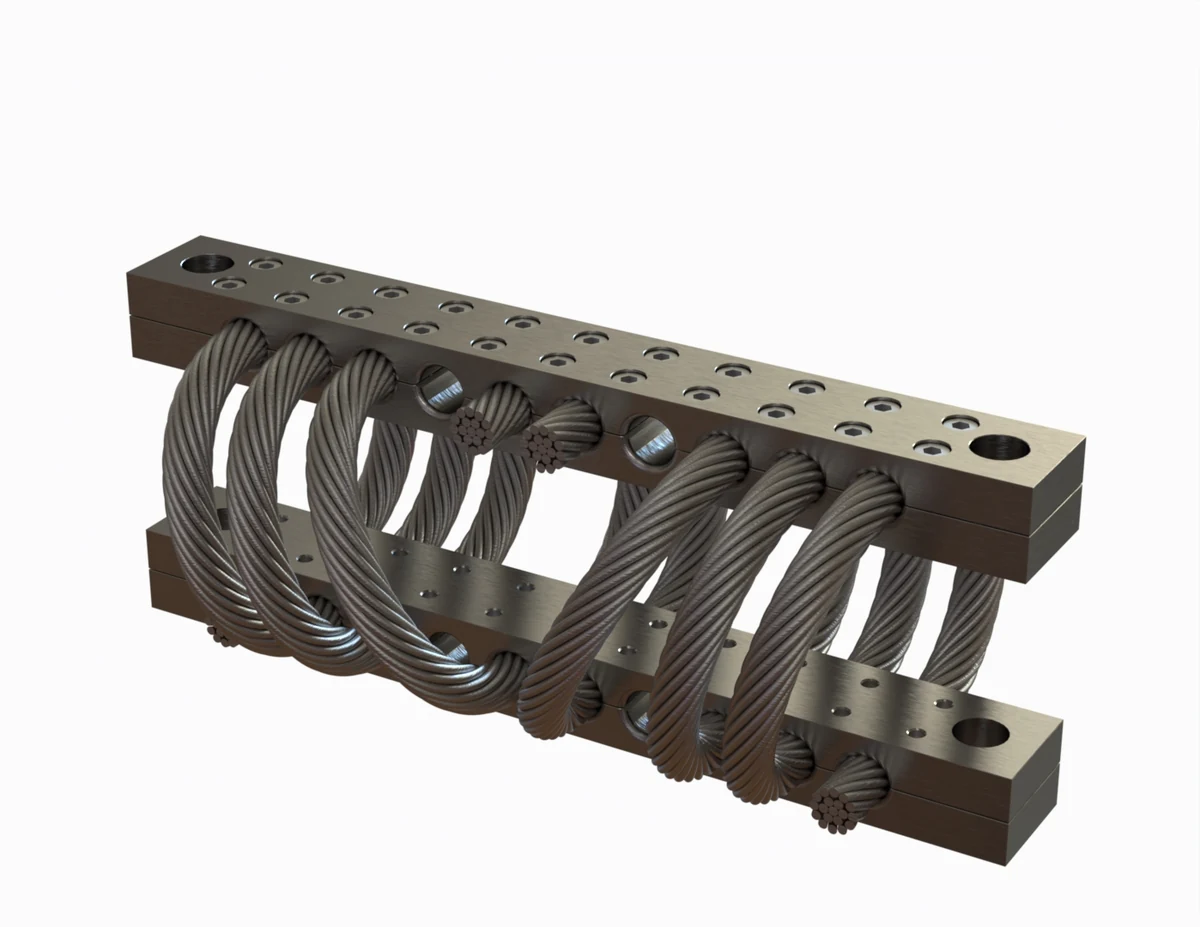

OVTS-600
- Weight (kg)
- 8
- Damping ratio (C/Cc)
- ≥0.18
- Dynamic stiffness · X (N/mm)
- 694
- Dynamic stiffness · Y (N/mm)
- 694
- Dynamic stiffness · Z (N/mm)
- 1724
- Weight (kg)
- 14
- Damping ratio (C/Cc)
- ≥0.18
- Dynamic stiffness · X (N/mm)
- 394
- Dynamic stiffness · Y (N/mm)
- 394
- Dynamic stiffness · Z (N/mm)
- 980
- Angebot anfragen

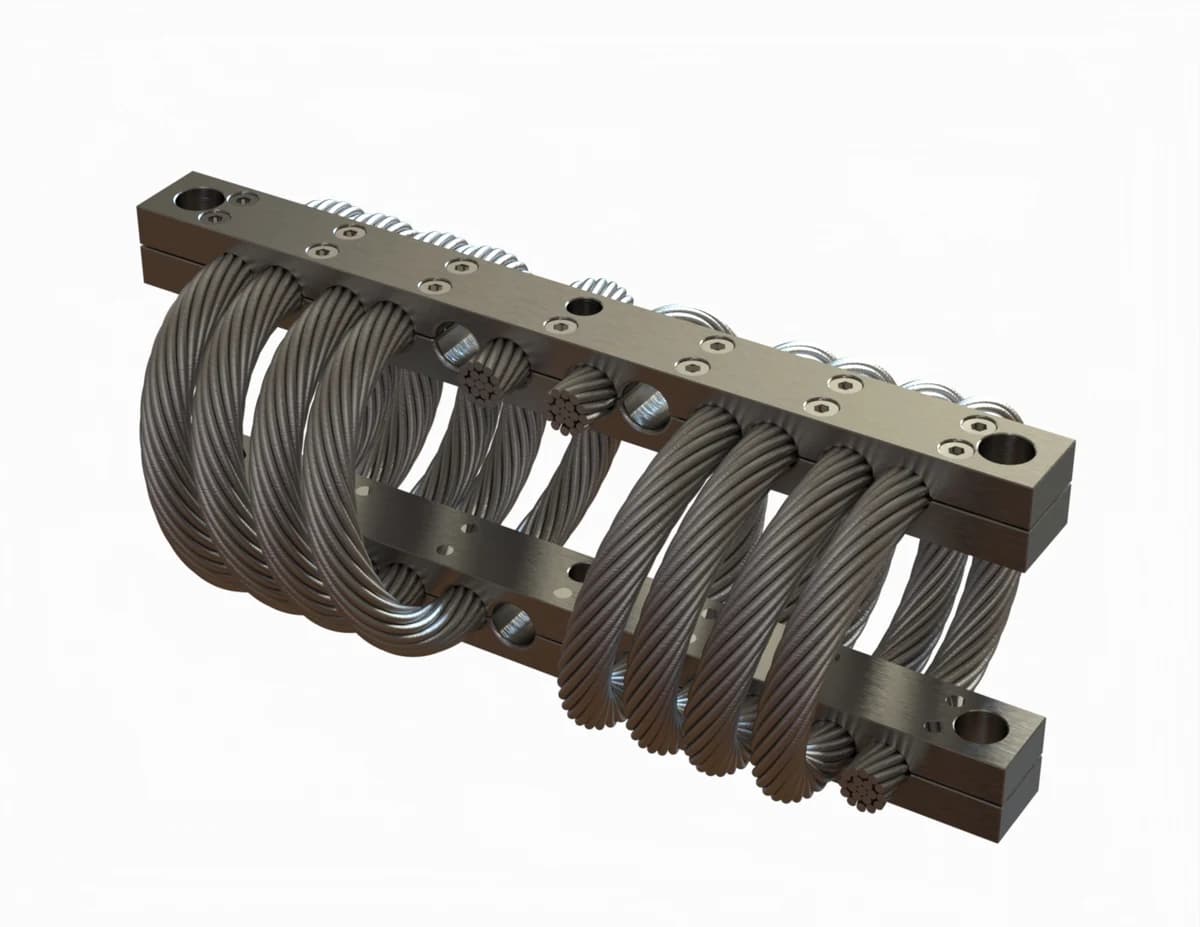

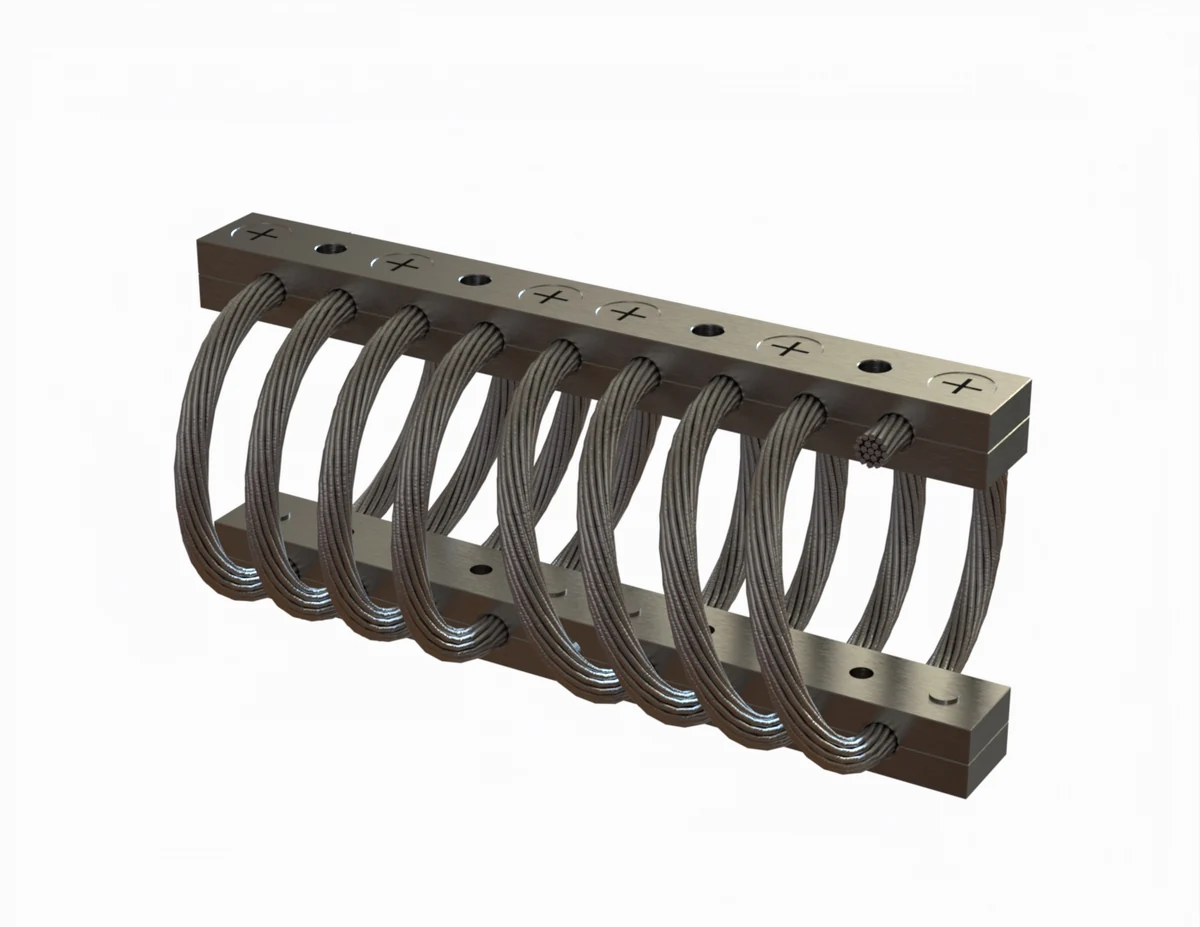

OVTS-1000
Technische Daten →- Weight (kg)
- 16
- Damping ratio (C/Cc)
- ≥0.18
- Dynamic stiffness · X (N/mm)
- 507
- Dynamic stiffness · Y (N/mm)
- 507
- Dynamic stiffness · Z (N/mm)
- 1264
- Angebot anfragen
OVTS-1200
Technische Daten →- Weight (kg)
- 18
- Damping ratio (C/Cc)
- ≥0.18
- Dynamic stiffness · X (N/mm)
- 620
- Dynamic stiffness · Y (N/mm)
- 620
- Dynamic stiffness · Z (N/mm)
- 1545
Construction and operating principle
Stranded steel cable deforms between mounting bars. Friction between the strands dissipates energy; stiffness varies with displacement and load direction.
Applications and selection
Equipment vibration isolation and transport protection. Specify the supported load, mounting direction, available travel and shock environment.
OVTS-800 / 1000 / 1200 outline and mounting dimensions

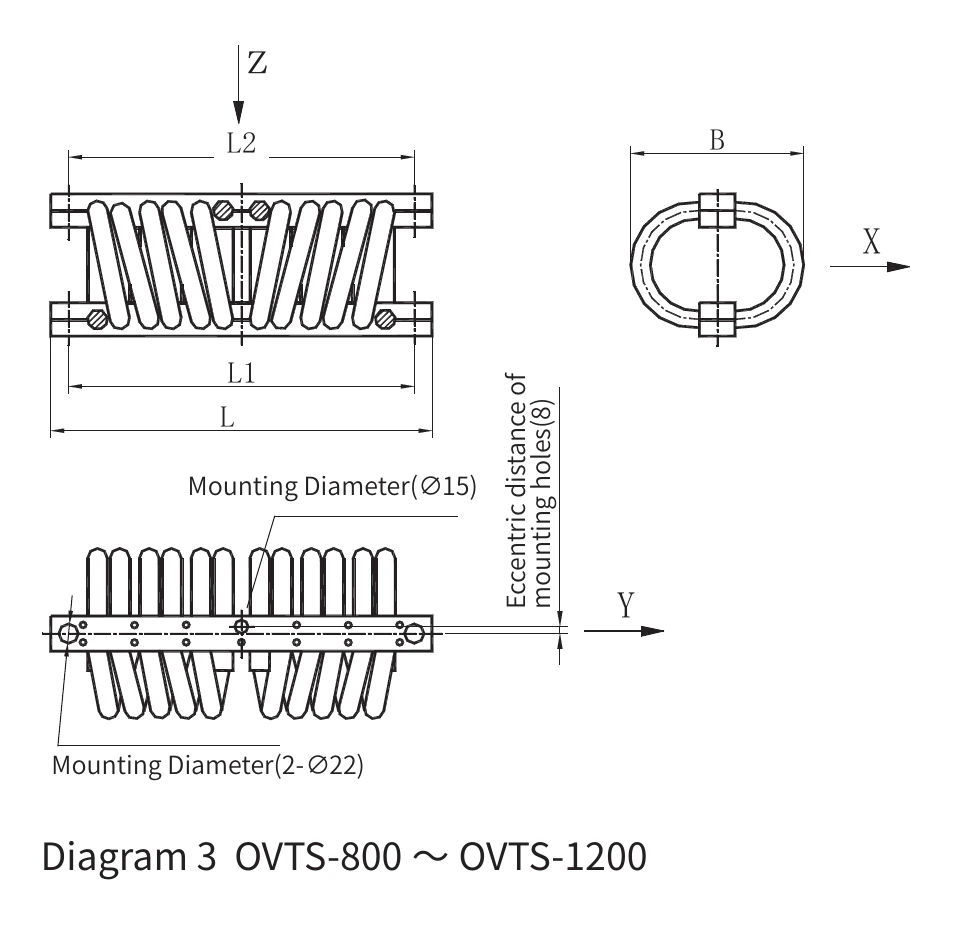

Catalogue Figure 3 for the OVTS-800 to OVTS-1200 range. Check the selected model's dimension table before using the drawing for installation.
Vibration Isolator 2024 · PDF pages 27
OVTS interface form reference

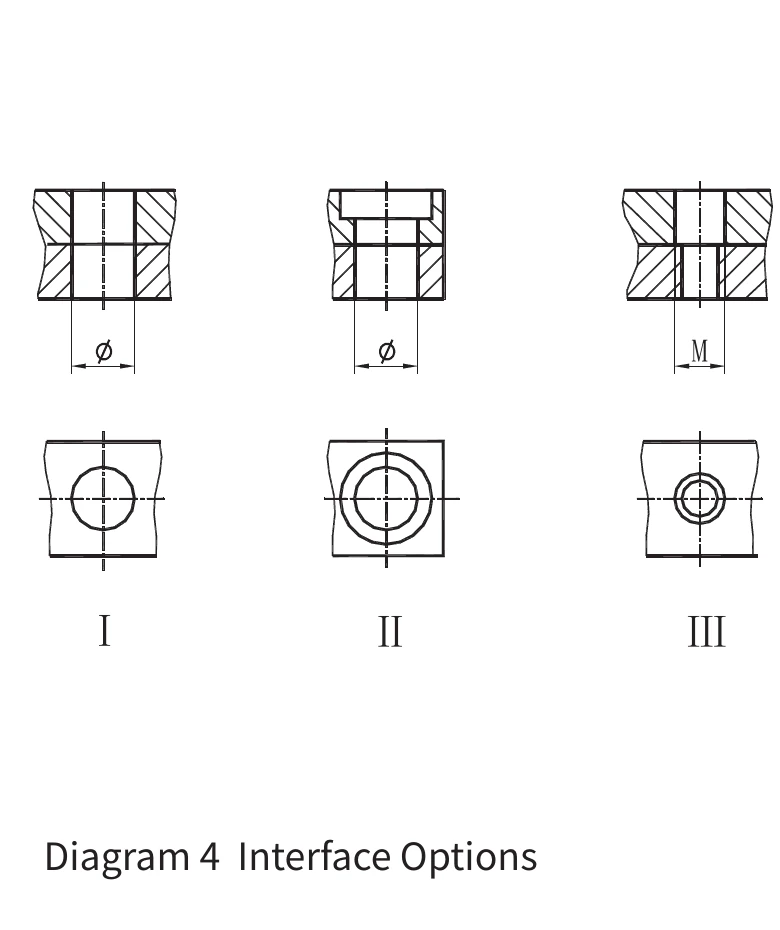

Catalogue Figure 4 shows interface forms I, II and III as a series reference. Match the interface against the specific model table; this drawing is not a model-level assignment.
Vibration Isolator 2024 · PDF pages 27
Technical reference: Chinese product catalogue · PDF pages 52, 53, 54, 55
