OVTW Series

OVTW Wire-Rope Isolators

A wire-rope range with model-specific load, deflection and stiffness data for compression, shear and angled loading.

Catalog and inquiry series

Technical model tableEnquire about this series

Technical model table

Representative product renderings. Select an image to view it in a new tab.

90 of 90 models

Columns5

Choose up to 8 table columns

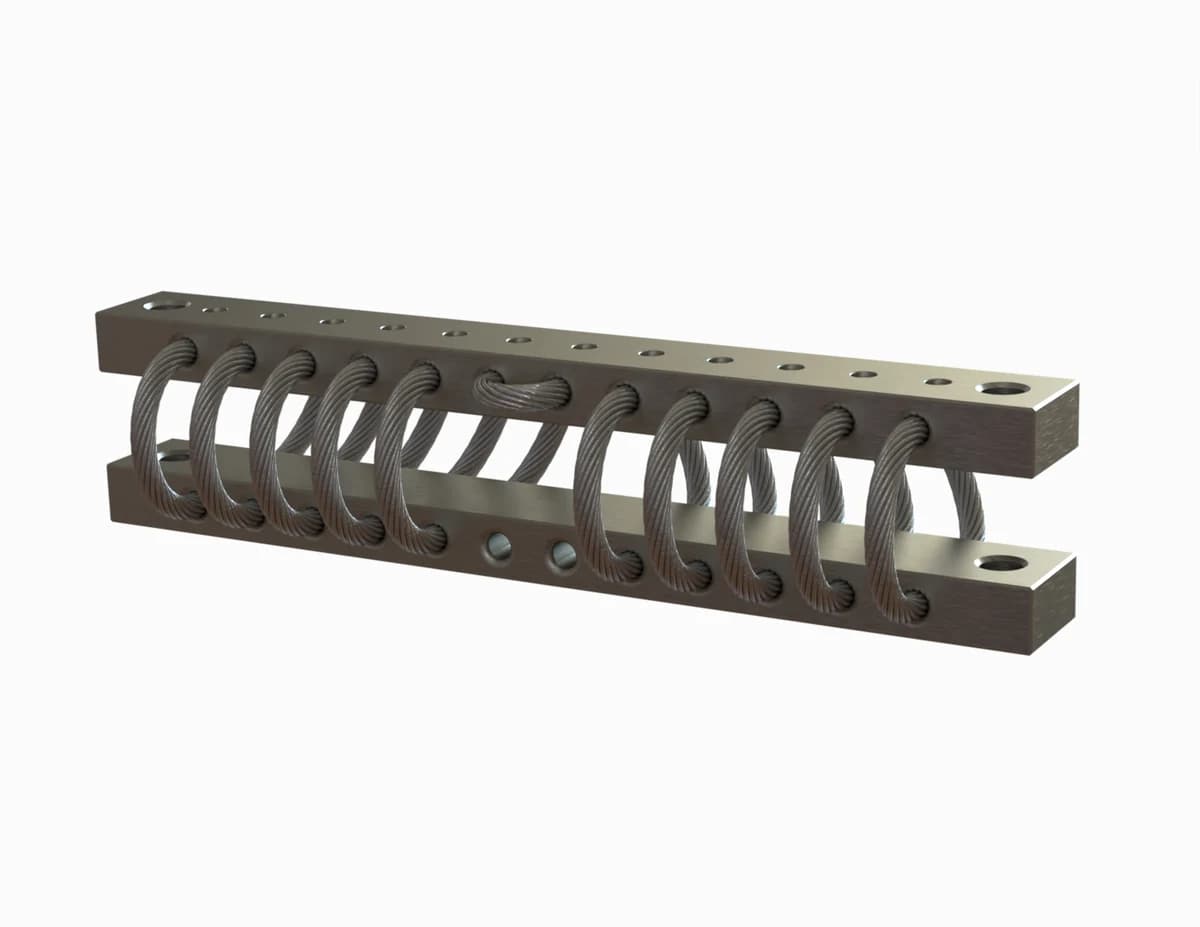

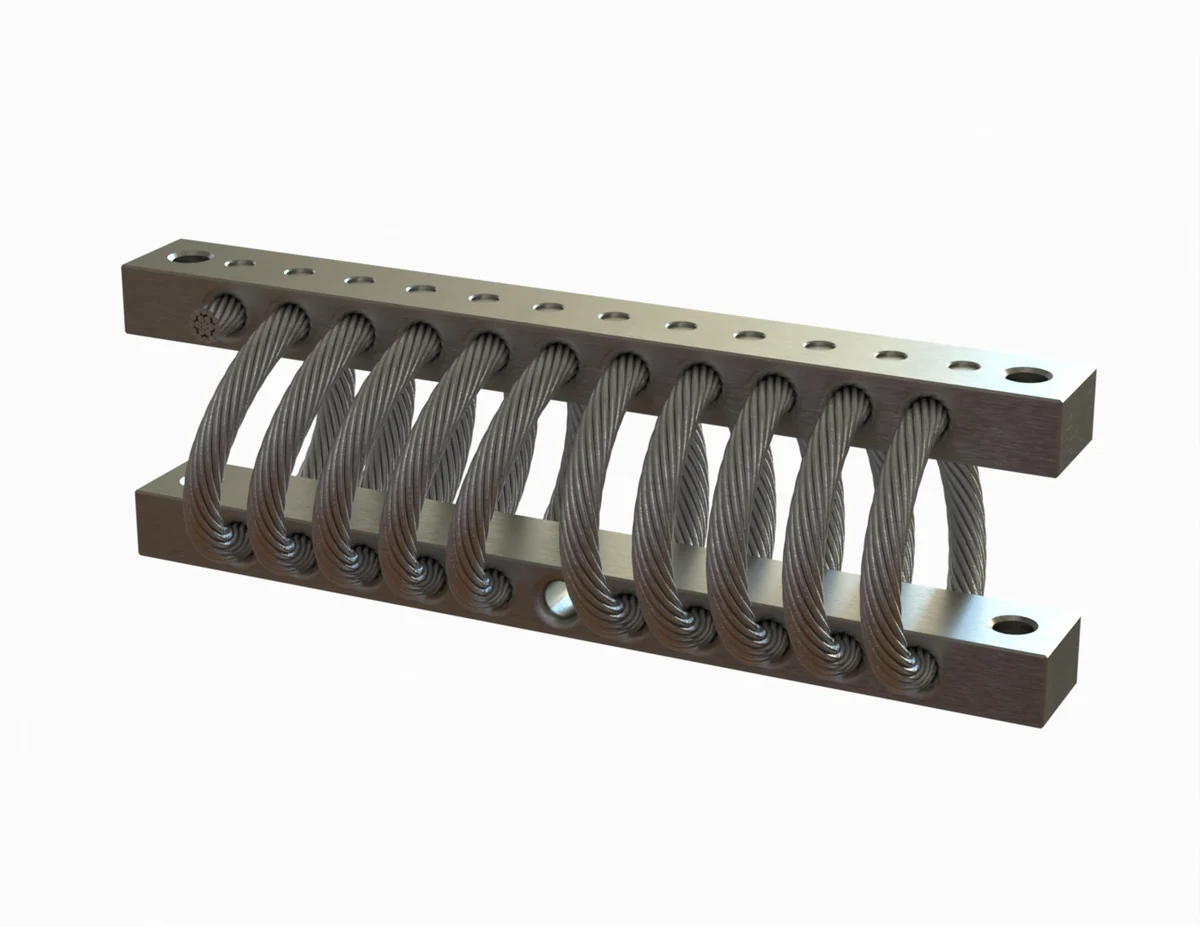

  • View representative rendering in a new tab: OVTW16-10-10

    OVTW16-10-10

    Specifications →
    Request a quote
    Weight (kg)
    0.02
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    11.7
    Max deflection · Compression (mm)
    8.6
    Max deflection · Shear (mm)
    8.6
  • View representative rendering in a new tab: OVTW16-20-10

    OVTW16-20-10

    Request a quote
    Weight (kg)
    0.02
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    14.7
    Max deflection · Compression (mm)
    9.7
    Max deflection · Shear (mm)
    10.7
  • View representative rendering in a new tab: OVTW16-40-10

    OVTW16-40-10

    Specifications →
    Request a quote
    Weight (kg)
    0.03
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    20.8
    Max deflection · Compression (mm)
    14.7
    Max deflection · Shear (mm)
    15.7
  • View representative rendering in a new tab: OVTW16-60-10

    OVTW16-60-10

    Request a quote
    Weight (kg)
    0.03
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    24.9
    Max deflection · Compression (mm)
    17.8
    Max deflection · Shear (mm)
    18.8
  • View representative rendering in a new tab: OVTW16-70-10

    OVTW16-70-10

    Request a quote
    Weight (kg)
    0.03
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    26.9
    Max deflection · Compression (mm)
    18.8
    Max deflection · Shear (mm)
    19.8
  • View representative rendering in a new tab: OVTW16-80-10

    OVTW16-80-10

    Request a quote
    Weight (kg)
    0.03
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    31
    Max deflection · Compression (mm)
    21.8
    Max deflection · Shear (mm)
    22.9
  • View representative rendering in a new tab: OVTW24-10-10

    OVTW24-10-10

    Request a quote
    Weight (kg)
    0.06
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    12.7
    Max deflection · Compression (mm)
    8.6
    Max deflection · Shear (mm)
    9.7
  • View representative rendering in a new tab: OVTW24-20-10

    OVTW24-20-10

    Request a quote
    Weight (kg)
    0.07
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    15.7
    Max deflection · Compression (mm)
    10.7
    Max deflection · Shear (mm)
    11.7
  • View representative rendering in a new tab: OVTW24-40-10

    OVTW24-40-10

    Request a quote
    Weight (kg)
    0.07
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    18.8
    Max deflection · Compression (mm)
    13.7
    Max deflection · Shear (mm)
    13.7
  • View representative rendering in a new tab: OVTW24-60-10

    OVTW24-60-10

    Request a quote
    Weight (kg)
    0.07
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    25.9
    Max deflection · Compression (mm)
    17.8
    Max deflection · Shear (mm)
    18.8
  • View representative rendering in a new tab: OVTW24-70-10

    OVTW24-70-10

    Request a quote
    Weight (kg)
    0.07
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    27.9
    Max deflection · Compression (mm)
    20.8
    Max deflection · Shear (mm)
    21.8
  • View representative rendering in a new tab: OVTW24-80-10

    OVTW24-80-10

    Request a quote
    Weight (kg)
    0.08
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    32
    Max deflection · Compression (mm)
    22.9
    Max deflection · Shear (mm)
    23.9
  • View representative rendering in a new tab: OVTW32-10-10

    OVTW32-10-10

    Request a quote
    Weight (kg)
    0.12
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    13.7
    Max deflection · Compression (mm)
    9.7
    Max deflection · Shear (mm)
    9.7
  • View representative rendering in a new tab: OVTW32-20-10

    OVTW32-20-10

    Request a quote
    Weight (kg)
    0.12
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    17.3
    Max deflection · Compression (mm)
    11.7
    Max deflection · Shear (mm)
    11.7
  • View representative rendering in a new tab: OVTW32-40-10

    OVTW32-40-10

    Request a quote
    Weight (kg)
    0.13
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    19.8
    Max deflection · Compression (mm)
    13.7
    Max deflection · Shear (mm)
    14.7
  • View representative rendering in a new tab: OVTW32-50-10

    OVTW32-50-10

    Specifications →
    Request a quote
    Weight (kg)
    0.13
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    23.9
    Max deflection · Compression (mm)
    16.8
    Max deflection · Shear (mm)
    17.8
  • View representative rendering in a new tab: OVTW32-60-10

    OVTW32-60-10

    Request a quote
    Weight (kg)
    0.13
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    26.9
    Max deflection · Compression (mm)
    18.8
    Max deflection · Shear (mm)
    19.8
  • View representative rendering in a new tab: OVTW32-70-10

    OVTW32-70-10

    Request a quote
    Weight (kg)
    0.14
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    31.0
    Max deflection · Compression (mm)
    21.8
    Max deflection · Shear (mm)
    22.9
  • View representative rendering in a new tab: OVTW32-80-10

    OVTW32-80-10

    Request a quote
    Weight (kg)
    0.14
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    34.0
    Max deflection · Compression (mm)
    23.9
    Max deflection · Shear (mm)
    25.9
  • View representative rendering in a new tab: OVTW40-20-10

    OVTW40-20-10

    Request a quote
    Weight (kg)
    0.15
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    17.8
    Max deflection · Compression (mm)
    12.7
    Max deflection · Shear (mm)
    12.7
  • View representative rendering in a new tab: OVTW40-40-10

    OVTW40-40-10

    Request a quote
    Weight (kg)
    0.15
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    21.8
    Max deflection · Compression (mm)
    14.7
    Max deflection · Shear (mm)
    15.7
  • View representative rendering in a new tab: OVTW40-60-10

    OVTW40-60-10

    Request a quote
    Weight (kg)
    0.16
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    27.9
    Max deflection · Compression (mm)
    19.8
    Max deflection · Shear (mm)
    20.8
  • View representative rendering in a new tab: OVTW40-80-10

    OVTW40-80-10

    Request a quote
    Weight (kg)
    0.17
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    35.6
    Max deflection · Compression (mm)
    24.9
    Max deflection · Shear (mm)
    25.9
  • View representative rendering in a new tab: OVTW40-90-10

    OVTW40-90-10

    Request a quote
    Weight (kg)
    0.18
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    44.7
    Max deflection · Compression (mm)
    32.0
    Max deflection · Shear (mm)
    33.5
  • View representative rendering in a new tab: OVTW48-20-10

    OVTW48-20-10

    Request a quote
    Weight (kg)
    0.19
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    12.7
    Max deflection · Compression (mm)
    8.6
    Max deflection · Shear (mm)
    8.6
  • View representative rendering in a new tab: OVTW48-30-10

    OVTW48-30-10

    Request a quote
    Weight (kg)
    0.20
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    16.8
    Max deflection · Compression (mm)
    11.7
    Max deflection · Shear (mm)
    11.7
  • View representative rendering in a new tab: OVTW48-40-10

    OVTW48-40-10

    Request a quote
    Weight (kg)
    0.21
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    19.8
    Max deflection · Compression (mm)
    13.7
    Max deflection · Shear (mm)
    14.7
  • View representative rendering in a new tab: OVTW48-50-10

    OVTW48-50-10

    Request a quote
    Weight (kg)
    0.21
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    22.9
    Max deflection · Compression (mm)
    15.7
    Max deflection · Shear (mm)
    16.8
  • View representative rendering in a new tab: OVTW48-60-10

    OVTW48-60-10

    Specifications →
    Request a quote
    Weight (kg)
    0.22
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    26.9
    Max deflection · Compression (mm)
    18.8
    Max deflection · Shear (mm)
    19.8
  • View representative rendering in a new tab: OVTW48-70-10

    OVTW48-70-10

    Request a quote
    Weight (kg)
    0.25
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    29
    Max deflection · Compression (mm)
    20.8
    Max deflection · Shear (mm)
    21.8
  • View representative rendering in a new tab: OVTW48-80-10

    OVTW48-80-10

    Request a quote
    Weight (kg)
    0.26
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    38.1
    Max deflection · Compression (mm)
    26.9
    Max deflection · Shear (mm)
    27.9

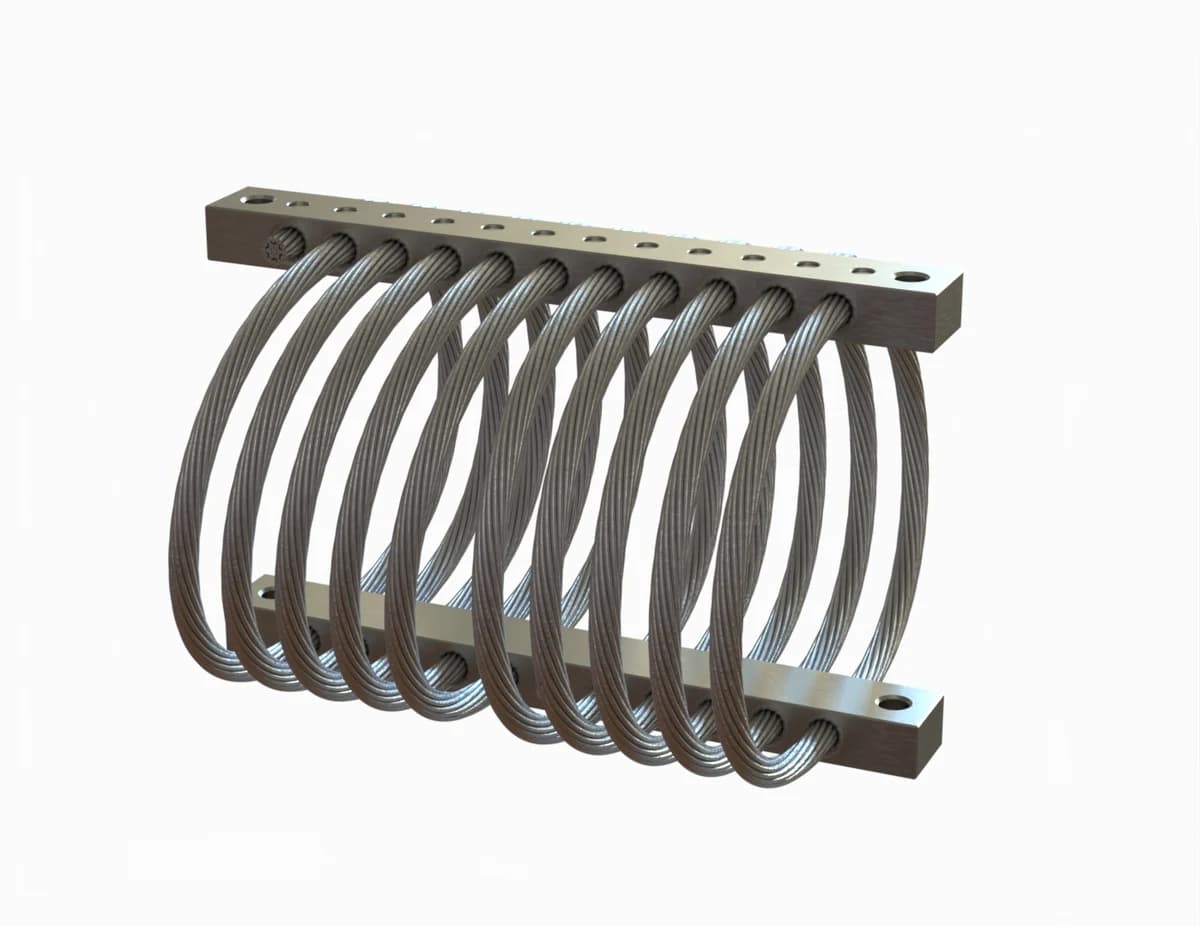

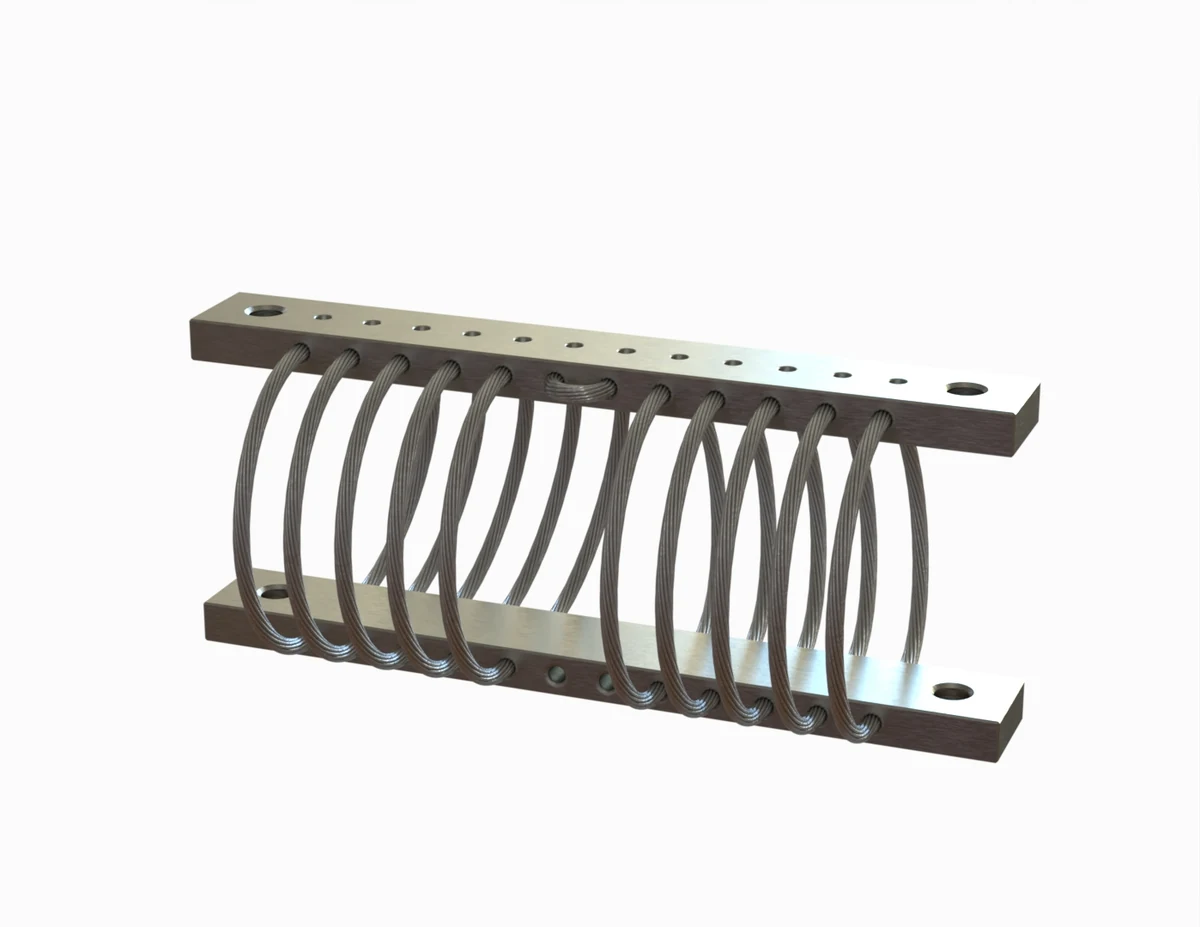

  • View representative rendering in a new tab: OVTW48-85-10

    OVTW48-85-10

    Request a quote
    Weight (kg)
    0.27
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    41.7
    Max deflection · Compression (mm)
    29.5
    Max deflection · Shear (mm)
    31
  • View representative rendering in a new tab: OVTW48-90-10

    OVTW48-90-10

    Request a quote
    Weight (kg)
    0.28
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    51.3
    Max deflection · Compression (mm)
    36.6
    Max deflection · Shear (mm)
    38.1
  • View representative rendering in a new tab: OVTW48-95-10

    OVTW48-95-10

    Request a quote
    Weight (kg)
    0.29
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    74.7
    Max deflection · Compression (mm)
    52.8
    Max deflection · Shear (mm)
    55.9
  • View representative rendering in a new tab: OVTW64-20-08

    OVTW64-20-08

    Request a quote
    Weight (kg)
    0.38
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    25.9
    Max deflection · Compression (mm)
    17.8
    Max deflection · Shear (mm)
    18.8
  • View representative rendering in a new tab: OVTW64-40-08

    OVTW64-40-08

    Request a quote
    Weight (kg)
    0.41
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    34
    Max deflection · Compression (mm)
    23.9
    Max deflection · Shear (mm)
    24.9
  • View representative rendering in a new tab: OVTW64-50-08

    OVTW64-50-08

    Request a quote
    Weight (kg)
    0.43
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    39.6
    Max deflection · Compression (mm)
    29
    Max deflection · Shear (mm)
    30

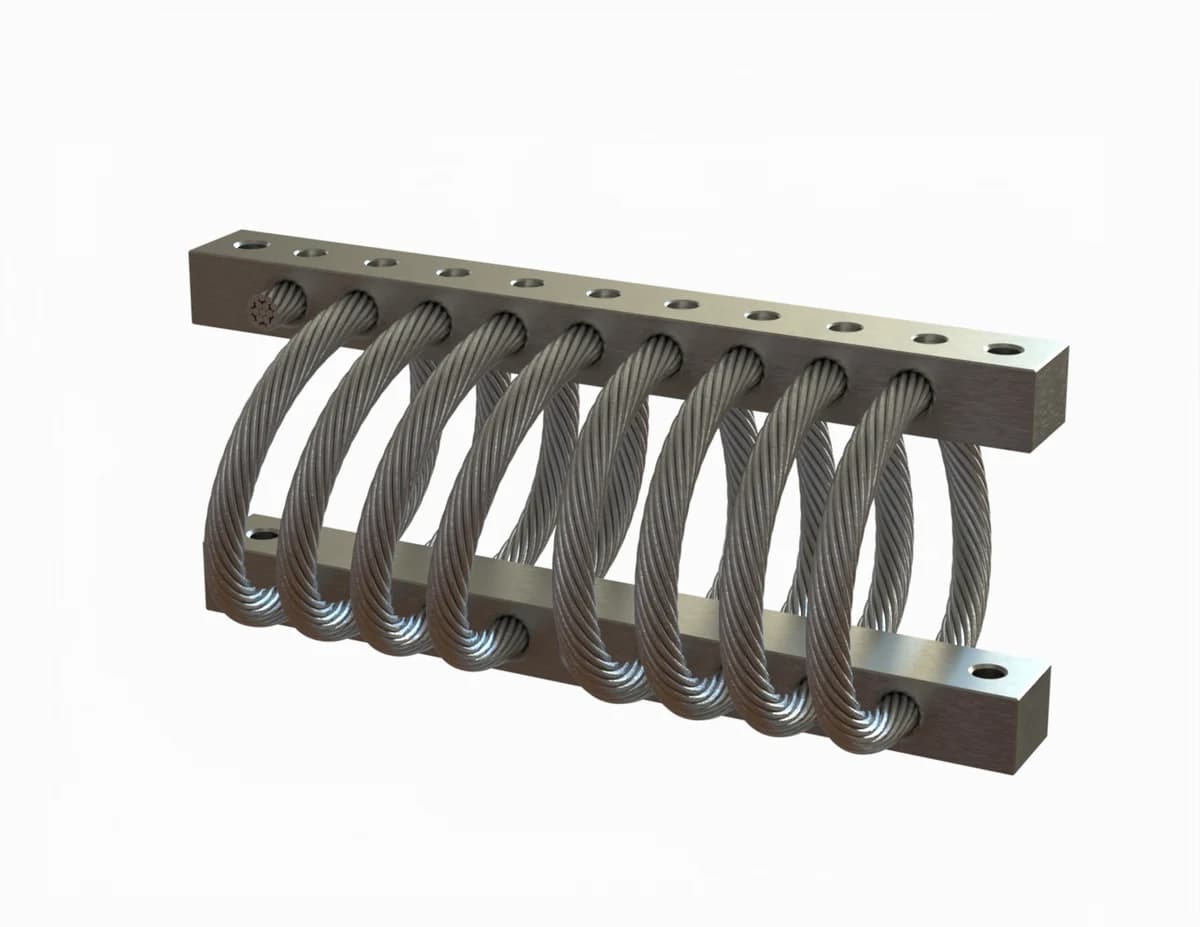

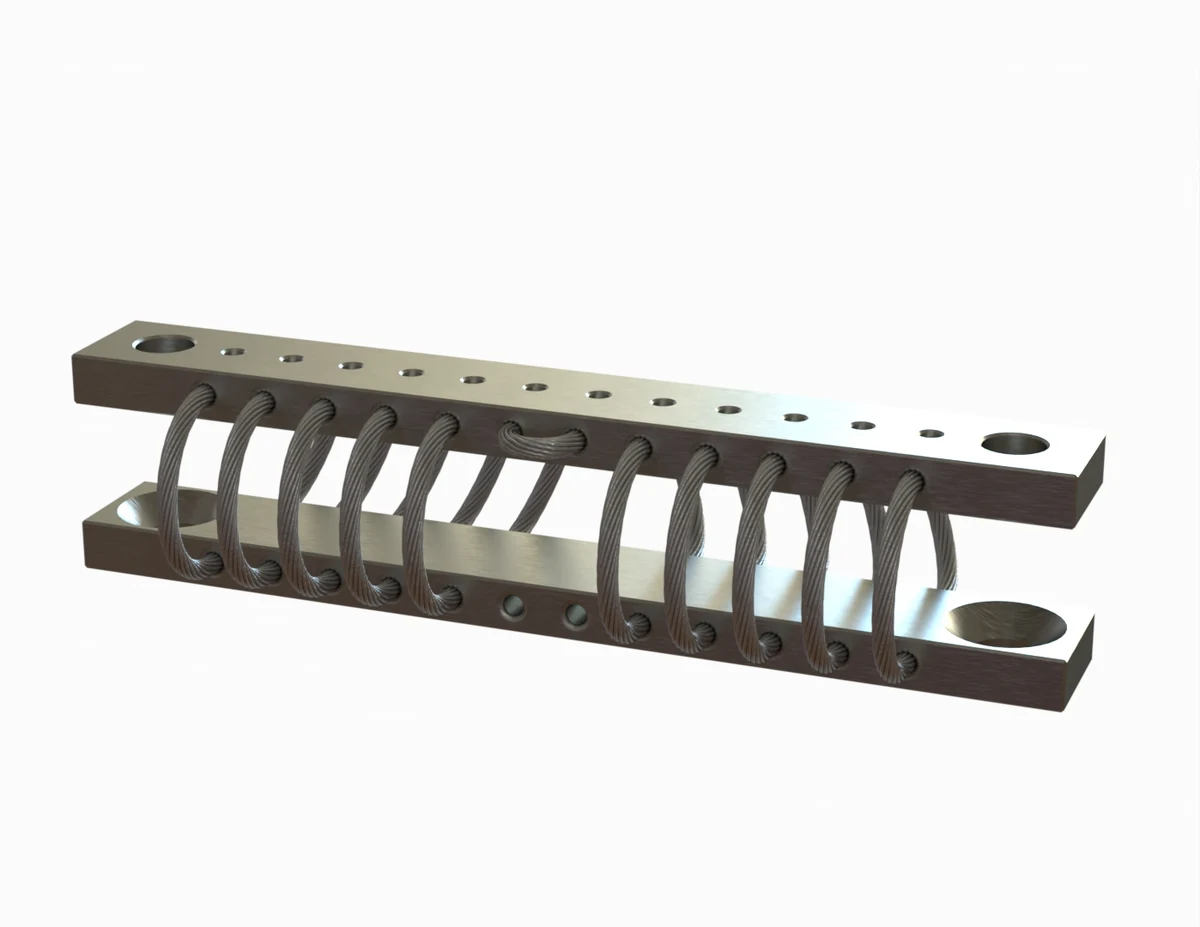

  • View representative rendering in a new tab: OVTW64-60-08

    OVTW64-60-08

    Specifications →
    Request a quote
    Weight (kg)
    0.47
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    45.7
    Max deflection · Compression (mm)
    32
    Max deflection · Shear (mm)
    34
  • View representative rendering in a new tab: OVTW64-70-08

    OVTW64-70-08

    Request a quote
    Weight (kg)
    0.52
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    45.7
    Max deflection · Compression (mm)
    32
    Max deflection · Shear (mm)
    34
  • View representative rendering in a new tab: OVTW64-80-08

    OVTW64-80-08

    Request a quote
    Weight (kg)
    0.54
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    50.8
    Max deflection · Compression (mm)
    35.6
    Max deflection · Shear (mm)
    38.1
  • View representative rendering in a new tab: OVTW64-85-08

    OVTW64-85-08

    Request a quote
    Weight (kg)
    0.57
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    50.8
    Max deflection · Compression (mm)
    35.6
    Max deflection · Shear (mm)
    38.1
  • View representative rendering in a new tab: OVTW64-90-08

    OVTW64-90-08

    Request a quote
    Weight (kg)
    0.59
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    71.6
    Max deflection · Compression (mm)
    50.8
    Max deflection · Shear (mm)
    52.8

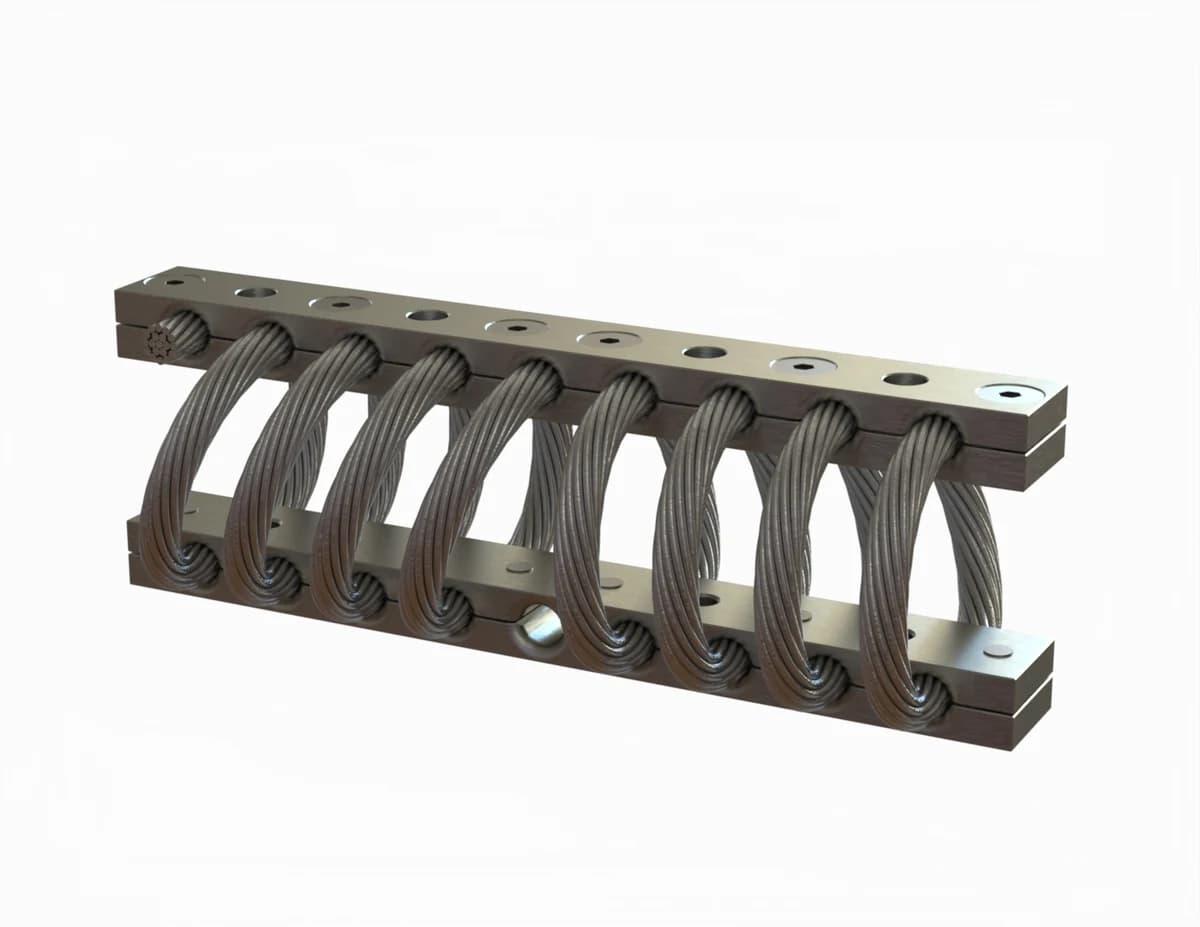

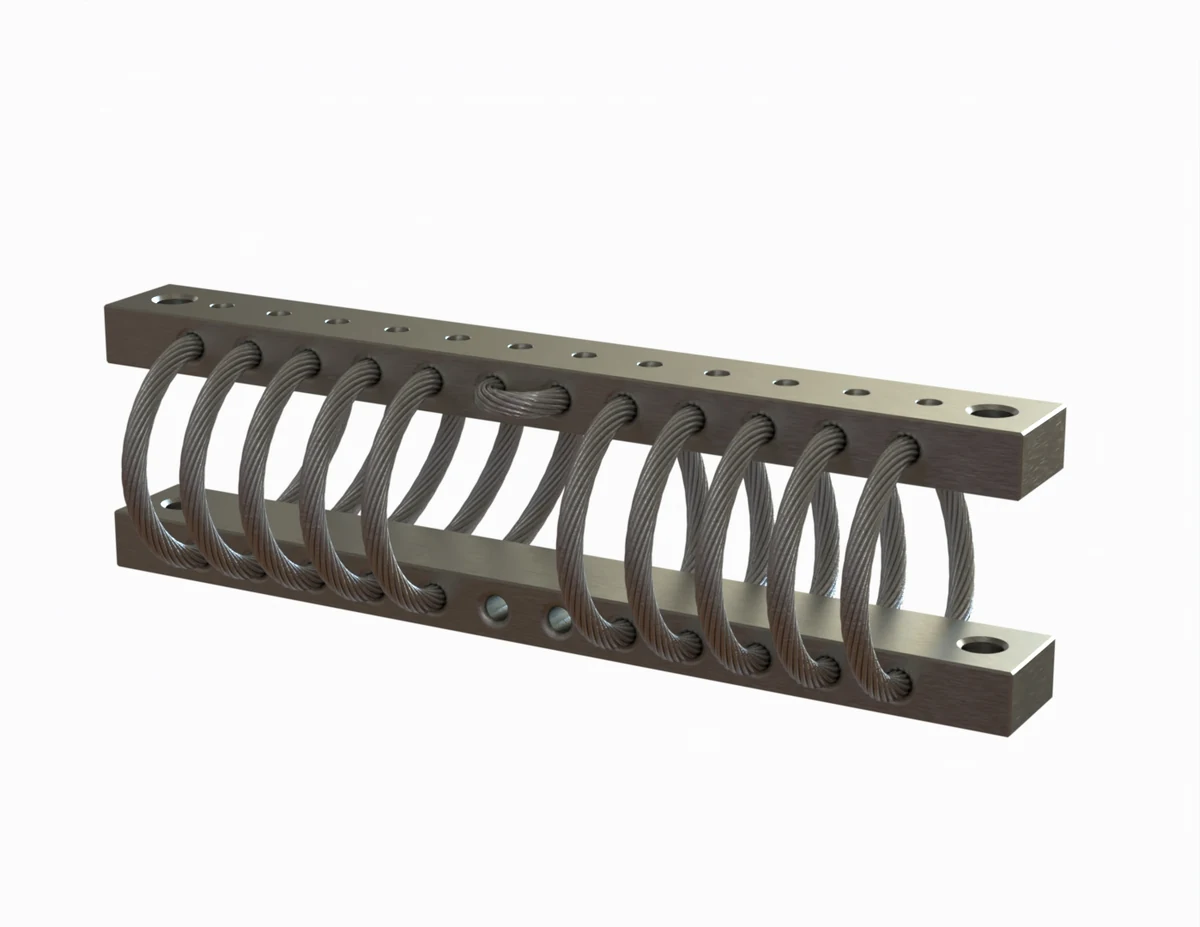

  • View representative rendering in a new tab: OVTW95-20-08

    OVTW95-20-08

    Request a quote
    Weight (kg)
    1.10
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    47.8
    Max deflection · Compression (mm)
    34
    Max deflection · Shear (mm)
    36.1
  • View representative rendering in a new tab: OVTW95-26-06

    OVTW95-26-06

    Request a quote
    Weight (kg)
    0.83
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    47.8
    Max deflection · Compression (mm)
    34.0
    Max deflection · Shear (mm)
    36.1
  • View representative rendering in a new tab: OVTW95-30-08

    OVTW95-30-08

    Request a quote
    Weight (kg)
    1.13
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    51.8
    Max deflection · Compression (mm)
    37.1
    Max deflection · Shear (mm)
    39.1
  • View representative rendering in a new tab: OVTW95-36-06

    OVTW95-36-06

    Request a quote
    Weight (kg)
    0.85
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    51.8
    Max deflection · Compression (mm)
    37.1
    Max deflection · Shear (mm)
    39.1

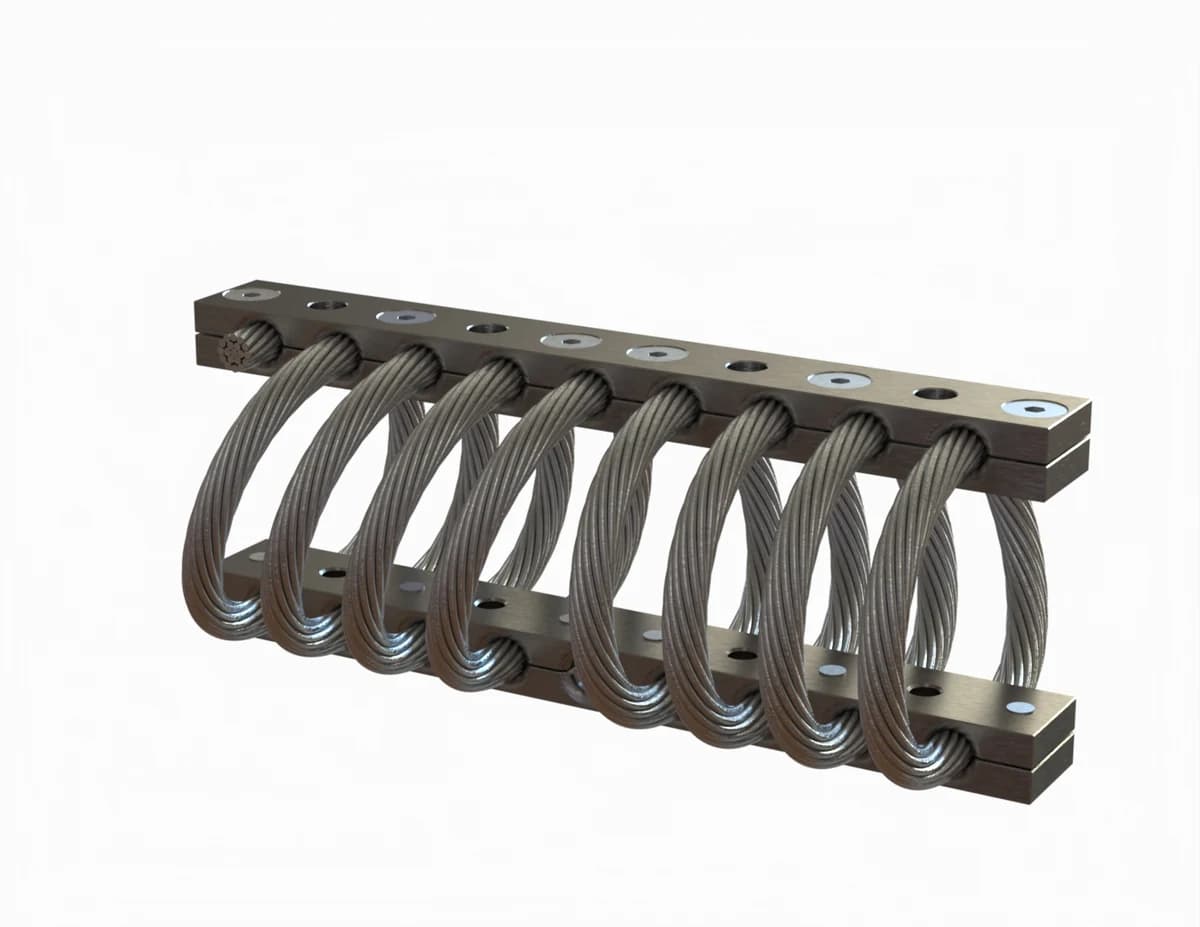

  • View representative rendering in a new tab: OVTW95-40-08

    OVTW95-40-08

    Request a quote
    Weight (kg)
    1.20
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    55.9
    Max deflection · Compression (mm)
    40.1
    Max deflection · Shear (mm)
    42.2
  • View representative rendering in a new tab: OVTW95-46-06

    OVTW95-46-06

    Request a quote
    Weight (kg)
    0.90
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    55.9
    Max deflection · Compression (mm)
    40.1
    Max deflection · Shear (mm)
    42.2
  • View representative rendering in a new tab: OVTW95-50-08

    OVTW95-50-08

    Request a quote
    Weight (kg)
    1.26
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    63
    Max deflection · Compression (mm)
    44.7
    Max deflection · Shear (mm)
    47.2
  • View representative rendering in a new tab: OVTW95-56-06

    OVTW95-56-06

    Specifications →
    Request a quote
    Weight (kg)
    0.95
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    63.0
    Max deflection · Compression (mm)
    44.7
    Max deflection · Shear (mm)
    47.2
  • View representative rendering in a new tab: OVTW95-60-08

    OVTW95-60-08

    Request a quote
    Weight (kg)
    1.30
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    71.1
    Max deflection · Compression (mm)
    49.8
    Max deflection · Shear (mm)
    52.8
  • View representative rendering in a new tab: OVTW95-66-06

    OVTW95-66-06

    Request a quote
    Weight (kg)
    0.98
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    71.1
    Max deflection · Compression (mm)
    49.8
    Max deflection · Shear (mm)
    52.8

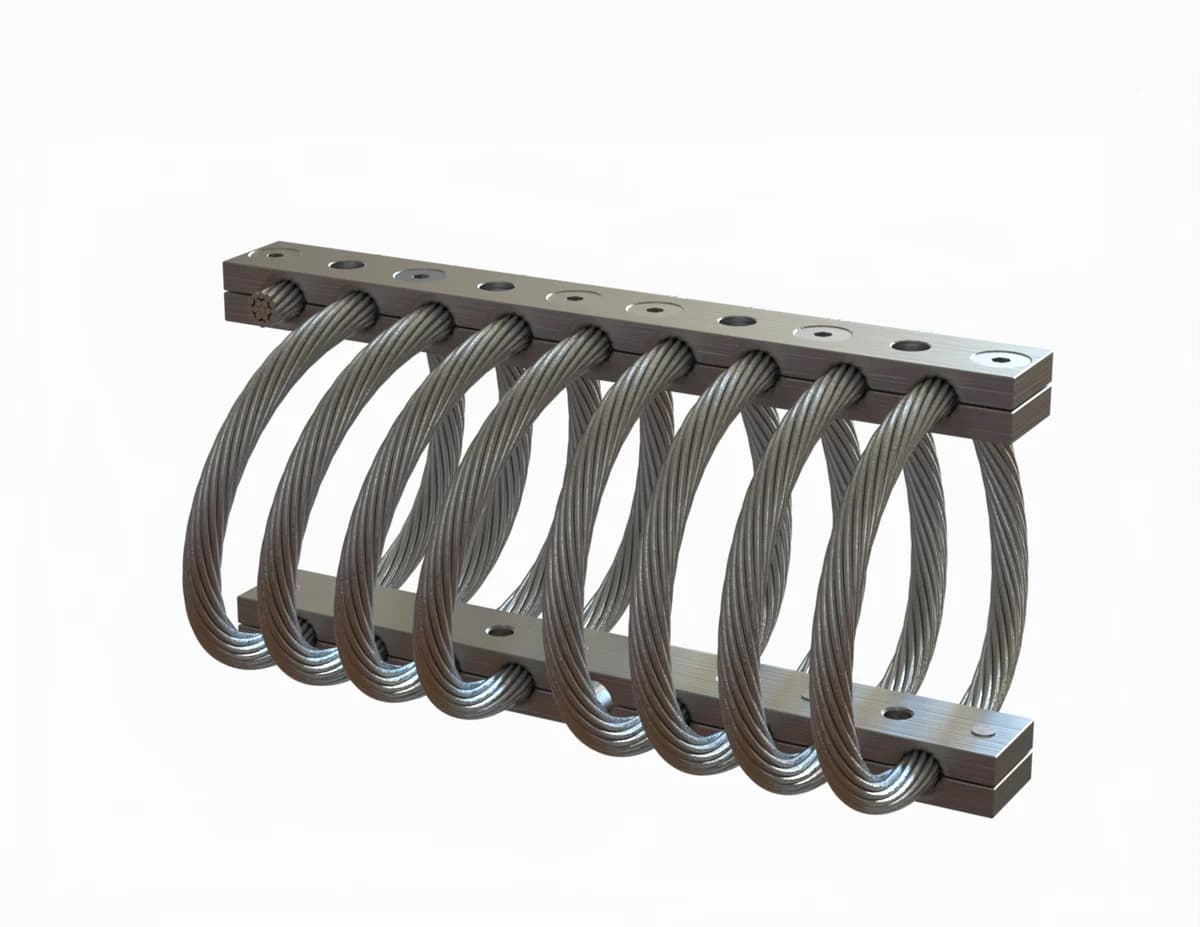

  • View representative rendering in a new tab: OVTW95-70-08

    OVTW95-70-08

    Request a quote
    Weight (kg)
    1.43
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    91.9
    Max deflection · Compression (mm)
    66
    Max deflection · Shear (mm)
    68.1

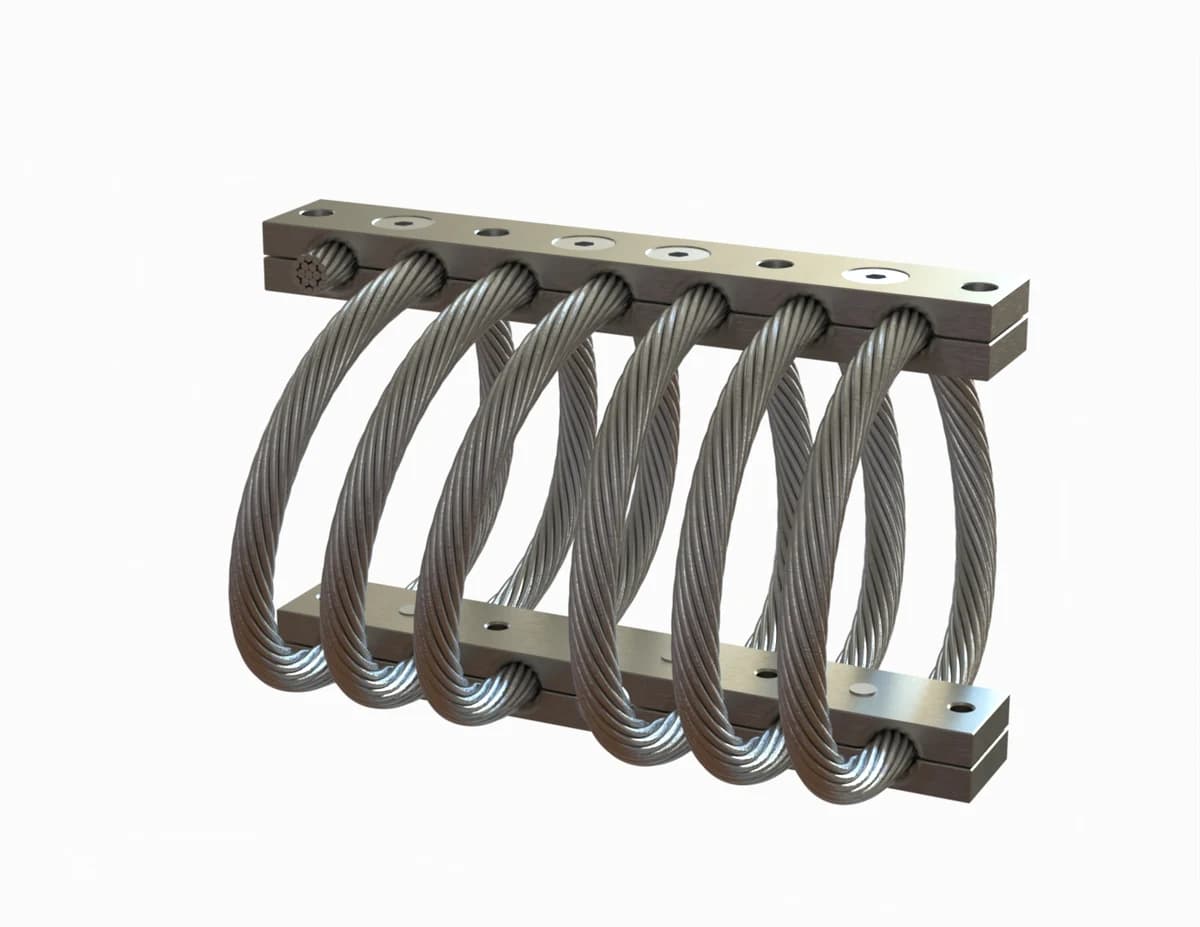

  • View representative rendering in a new tab: OVTW95-76-06

    OVTW95-76-06

    Request a quote
    Weight (kg)
    1.07
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    91.9
    Max deflection · Compression (mm)
    66.0
    Max deflection · Shear (mm)
    68.1
  • View representative rendering in a new tab: OVTW95-80-08

    OVTW95-80-08

    Request a quote
    Weight (kg)
    1.50
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    95
    Max deflection · Compression (mm)
    68.1
    Max deflection · Shear (mm)
    71.1
  • View representative rendering in a new tab: OVTW95-86-06

    OVTW95-86-06

    Request a quote
    Weight (kg)
    1.12
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    95.0
    Max deflection · Compression (mm)
    68.1
    Max deflection · Shear (mm)
    71.1
  • View representative rendering in a new tab: OVTW127-20-08

    OVTW127-20-08

    Request a quote
    Weight (kg)
    1.81
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    44.7
    Max deflection · Compression (mm)
    32
    Max deflection · Shear (mm)
    33
  • View representative rendering in a new tab: OVTW127-26-06

    OVTW127-26-06

    Request a quote
    Weight (kg)
    1.36
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    44.7
    Max deflection · Compression (mm)
    32
    Max deflection · Shear (mm)
    33
  • View representative rendering in a new tab: OVTW127-30-08

    OVTW127-30-08

    Request a quote
    Weight (kg)
    1.91
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    52.8
    Max deflection · Compression (mm)
    38.1
    Max deflection · Shear (mm)
    40.1
  • View representative rendering in a new tab: OVTW127-36-06

    OVTW127-36-06

    Request a quote
    Weight (kg)
    1.43
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    52.8
    Max deflection · Compression (mm)
    38.1
    Max deflection · Shear (mm)
    40.1
  • View representative rendering in a new tab: OVTW127-40-08

    OVTW127-40-08

    Request a quote
    Weight (kg)
    2.00
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    61
    Max deflection · Compression (mm)
    43.2
    Max deflection · Shear (mm)
    45.2
  • View representative rendering in a new tab: OVTW127-46-06

    OVTW127-46-06

    Request a quote
    Weight (kg)
    1.50
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    61
    Max deflection · Compression (mm)
    43.2
    Max deflection · Shear (mm)
    45.2
  • View representative rendering in a new tab: OVTW127-60-08

    OVTW127-60-08

    Request a quote
    Weight (kg)
    2.22
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    68.6
    Max deflection · Compression (mm)
    48.8
    Max deflection · Shear (mm)
    50.8
  • View representative rendering in a new tab: OVTW127-66-06

    OVTW127-66-06

    Request a quote
    Weight (kg)
    1.67
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    68.6
    Max deflection · Compression (mm)
    48.8
    Max deflection · Shear (mm)
    50.8
  • View representative rendering in a new tab: OVTW127-70-08

    OVTW127-70-08

    Request a quote
    Weight (kg)
    2.40
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    84.8
    Max deflection · Compression (mm)
    59.9
    Max deflection · Shear (mm)
    56.9
  • View representative rendering in a new tab: OVTW127-76-06

    OVTW127-76-06

    Request a quote
    Weight (kg)
    1.81
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    84.8
    Max deflection · Compression (mm)
    59.9
    Max deflection · Shear (mm)
    56.9
  • View representative rendering in a new tab: OVTW127-80-08

    OVTW127-80-08

    Request a quote
    Weight (kg)
    2.70
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    105.7
    Max deflection · Compression (mm)
    74.7
    Max deflection · Shear (mm)
    77.7
  • View representative rendering in a new tab: OVTW127-85-08

    OVTW127-85-08

    Request a quote
    Weight (kg)
    2.90
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    121.9
    Max deflection · Compression (mm)
    85.9
    Max deflection · Shear (mm)
    90.9
  • View representative rendering in a new tab: OVTW127-86-06

    OVTW127-86-06

    Request a quote
    Weight (kg)
    2.02
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    105.7
    Max deflection · Compression (mm)
    74.7
    Max deflection · Shear (mm)
    77.7
  • View representative rendering in a new tab: OVTW127-89-06

    OVTW127-89-06

    Request a quote
    Weight (kg)
    2.18
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    121.9
    Max deflection · Compression (mm)
    85.9
    Max deflection · Shear (mm)
    90.9
  • View representative rendering in a new tab: OVTW127-90-08

    OVTW127-90-08

    Request a quote
    Weight (kg)
    3.09
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    144.8
    Max deflection · Compression (mm)
    102.6
    Max deflection · Shear (mm)
    107.7
  • View representative rendering in a new tab: OVTW127-96-06

    OVTW127-96-06

    Request a quote
    Weight (kg)
    2.31
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    144.8
    Max deflection · Compression (mm)
    102.6
    Max deflection · Shear (mm)
    107.7
  • View representative rendering in a new tab: OVTW159-20-08

    OVTW159-20-08

    Request a quote
    Weight (kg)
    3.00
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    45.7
    Max deflection · Compression (mm)
    31.8
    Max deflection · Shear (mm)
    34.3
  • View representative rendering in a new tab: OVTW159-30-08

    OVTW159-30-08

    Request a quote
    Weight (kg)
    3.20
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    54.6
    Max deflection · Compression (mm)
    38.1
    Max deflection · Shear (mm)
    40.6
  • View representative rendering in a new tab: OVTW159-40-08

    OVTW159-40-08

    Request a quote
    Weight (kg)
    3.40
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    59.7
    Max deflection · Compression (mm)
    41.9
    Max deflection · Shear (mm)
    43.2
  • View representative rendering in a new tab: OVTW159-60-08

    OVTW159-60-08

    Request a quote
    Weight (kg)
    3.70
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    71.1
    Max deflection · Compression (mm)
    49.5
    Max deflection · Shear (mm)
    52.1
  • View representative rendering in a new tab: OVTW159-70-08

    OVTW159-70-08

    Request a quote
    Weight (kg)
    4.00
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    83.8
    Max deflection · Compression (mm)
    58.4
    Max deflection · Shear (mm)
    61
  • View representative rendering in a new tab: OVTW159-80-08

    OVTW159-80-08

    Request a quote
    Weight (kg)
    4.31
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    94
    Max deflection · Compression (mm)
    67.3
    Max deflection · Shear (mm)
    69.9
  • View representative rendering in a new tab: OVTW159-90-08

    OVTW159-90-08

    Request a quote
    Weight (kg)
    4.63
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    101.6
    Max deflection · Compression (mm)
    73.7
    Max deflection · Shear (mm)
    76.2
  • View representative rendering in a new tab: OVTW222-20-08

    OVTW222-20-08

    Request a quote
    Weight (kg)
    8.40
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    72.4
    Max deflection · Compression (mm)
    50.8
    Max deflection · Shear (mm)
    53.3
  • View representative rendering in a new tab: OVTW222-40-08

    OVTW222-40-08

    Request a quote
    Weight (kg)
    9.53
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    96.5
    Max deflection · Compression (mm)
    67.3
    Max deflection · Shear (mm)
    71.1
  • View representative rendering in a new tab: OVTW222-60-08

    OVTW222-60-08

    Request a quote
    Weight (kg)
    9.90
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    105.4
    Max deflection · Compression (mm)
    74.9
    Max deflection · Shear (mm)
    77.5

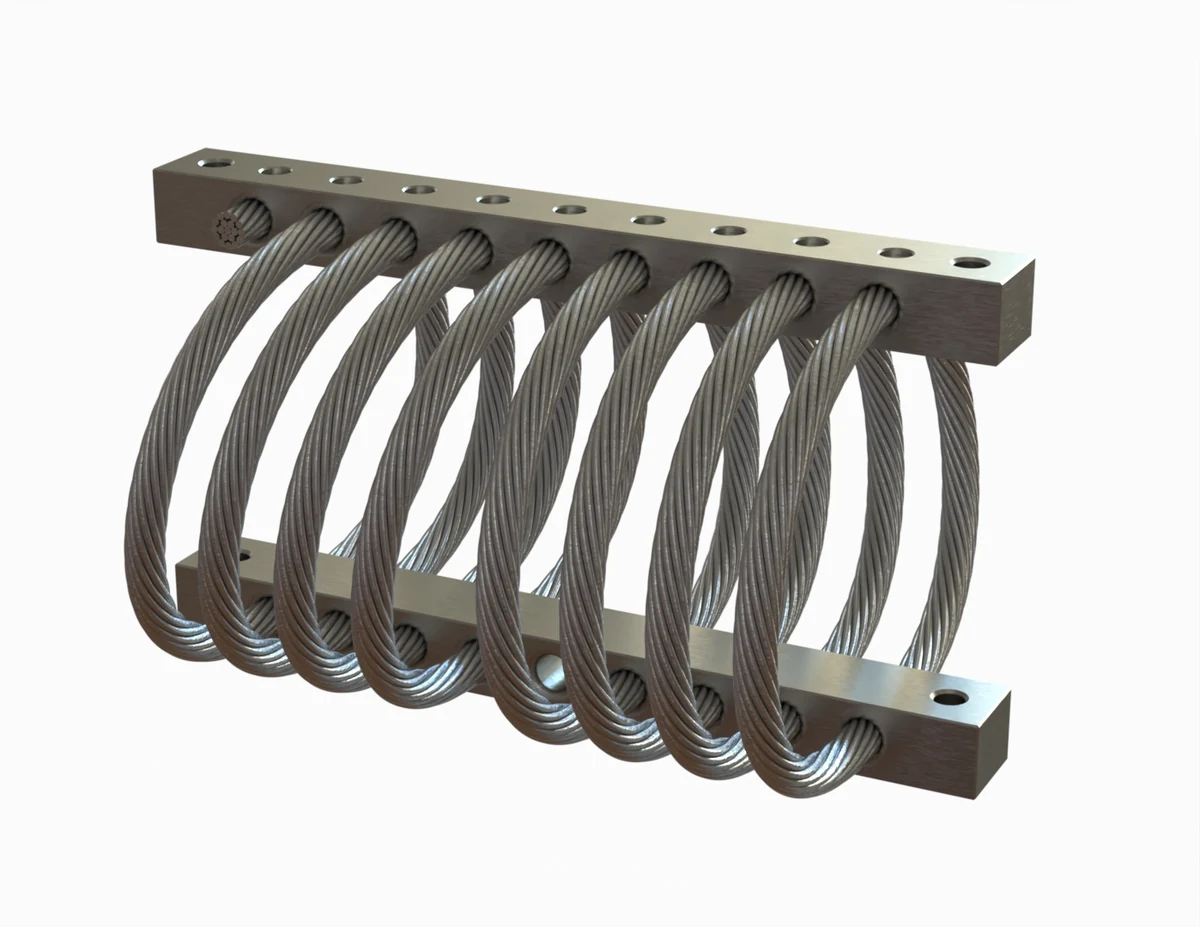

  • View representative rendering in a new tab: OVTW222-80-08

    OVTW222-80-08

    Request a quote
    Weight (kg)
    11.50
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    144.8
    Max deflection · Compression (mm)
    102.9
    Max deflection · Shear (mm)
    108

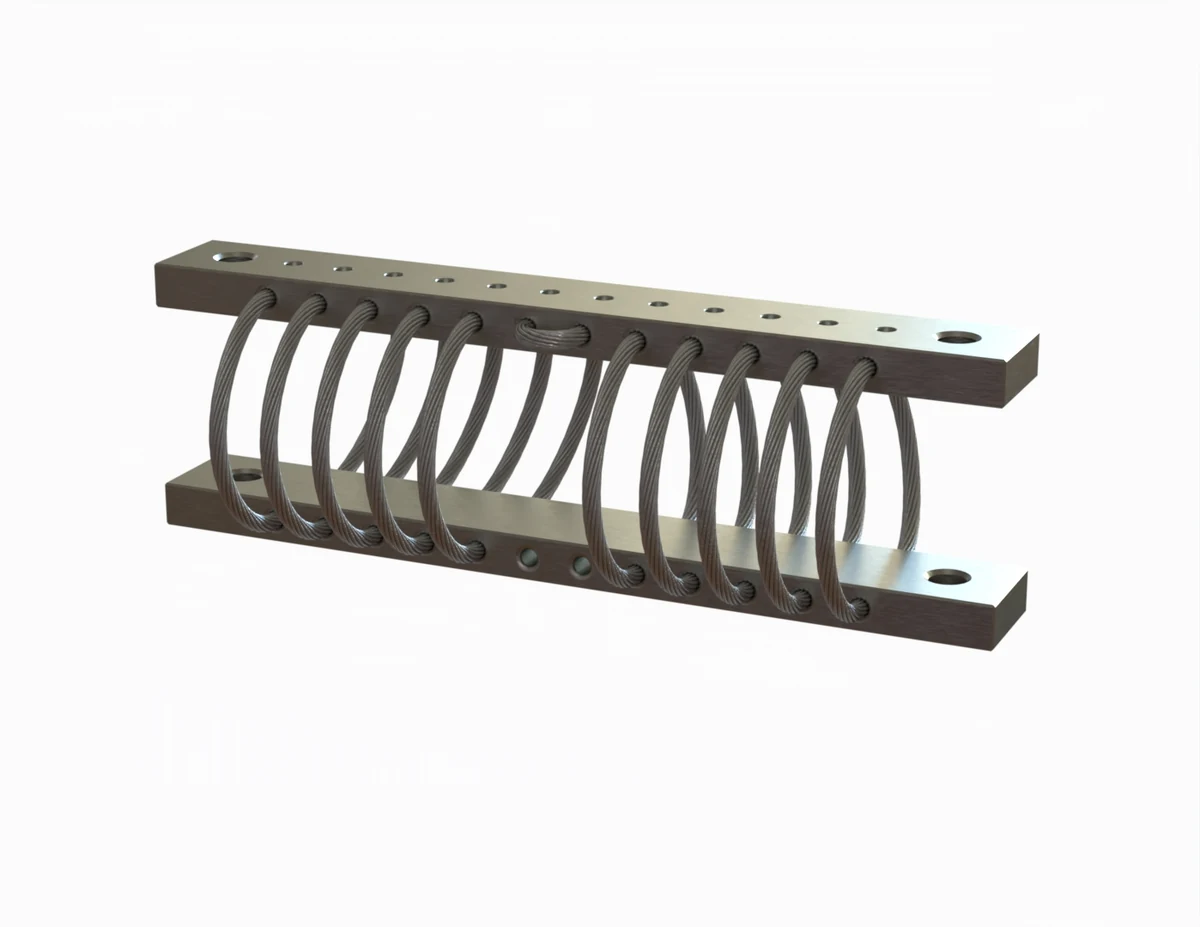

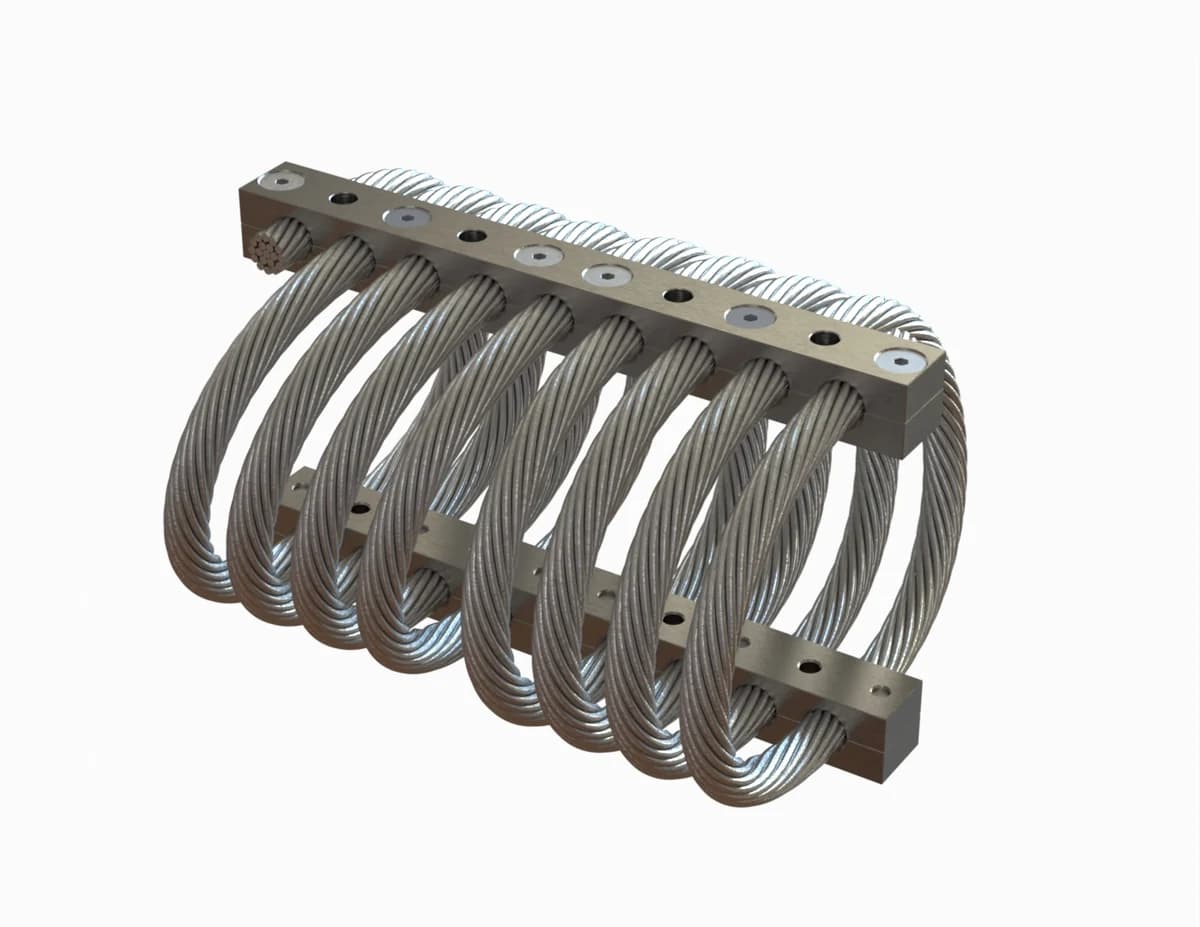

  • View representative rendering in a new tab: OVTW222-90-08

    OVTW222-90-08

    Request a quote
    Weight (kg)
    12.70
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    177.8
    Max deflection · Compression (mm)
    125.7
    Max deflection · Shear (mm)
    132.1

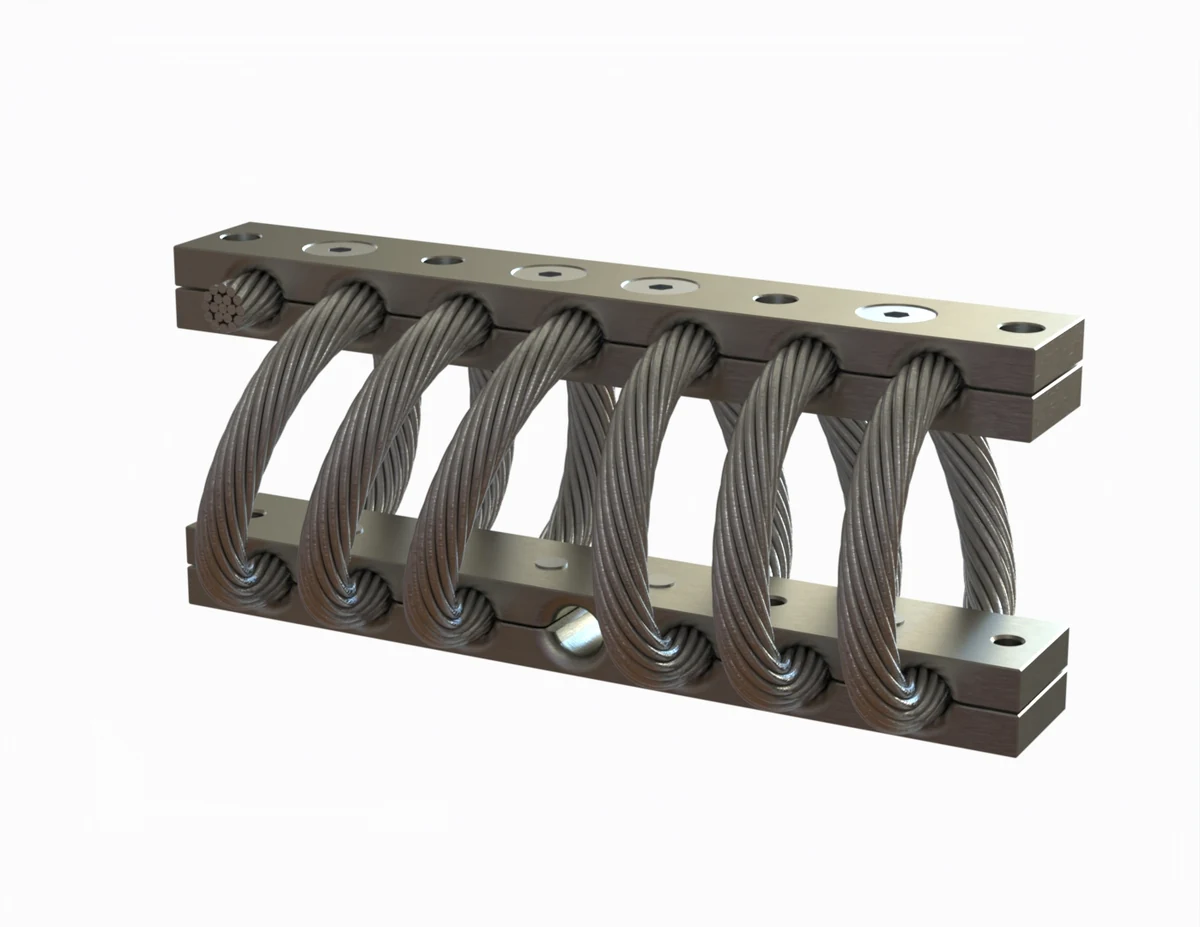

  • View representative rendering in a new tab: OVTW222-95-08

    OVTW222-95-08

    Request a quote
    Weight (kg)
    13.90
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    177.8
    Max deflection · Compression (mm)
    125.7
    Max deflection · Shear (mm)
    132.1

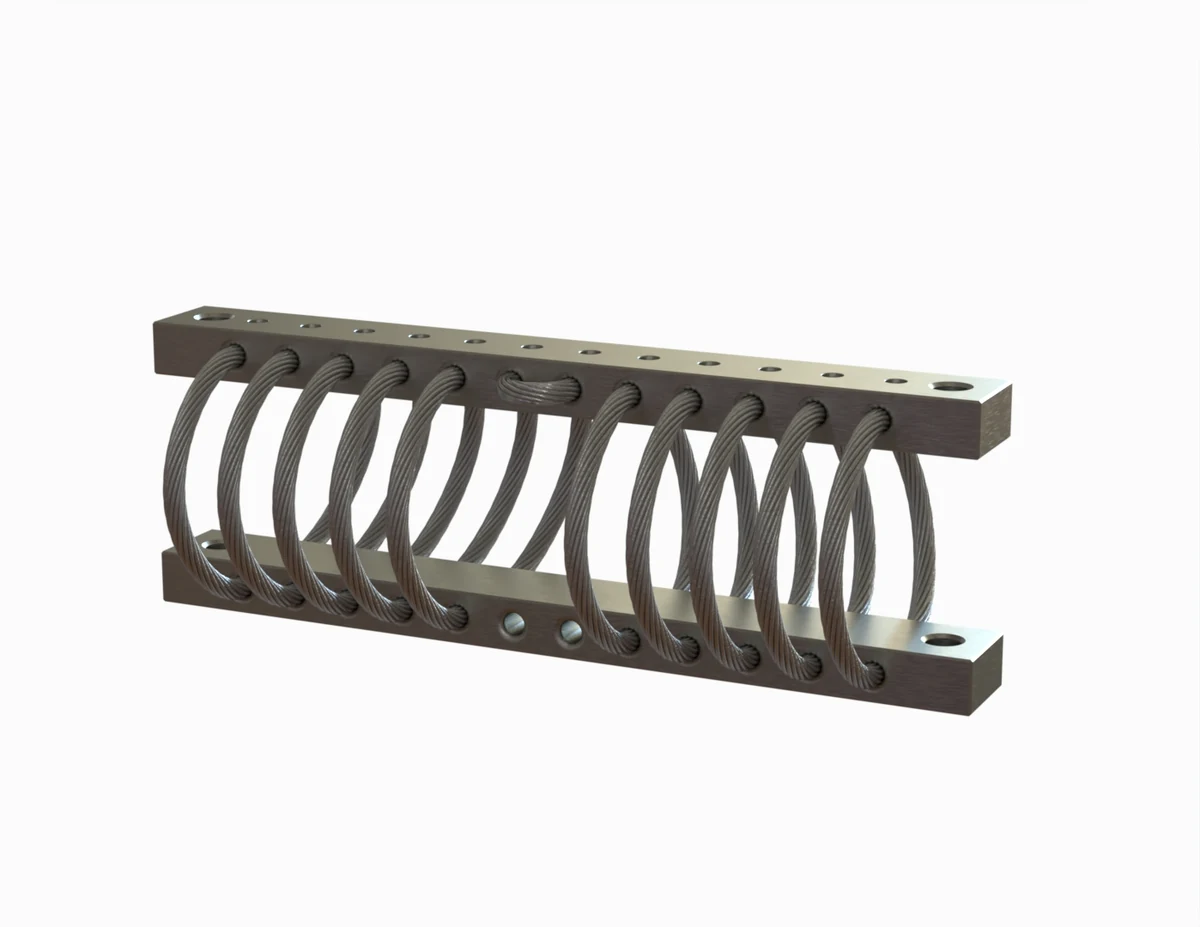

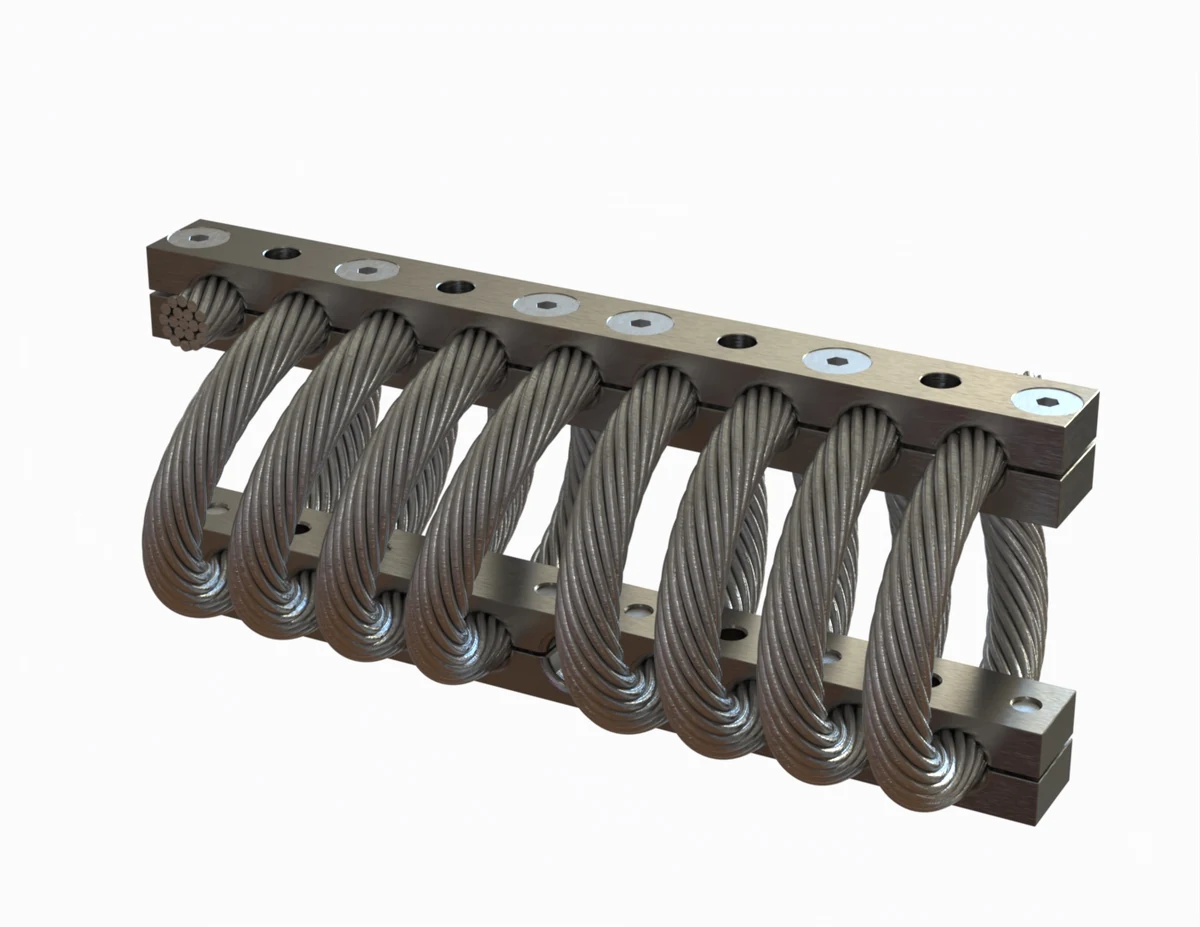

  • View representative rendering in a new tab: OVTW286-20-08

    OVTW286-20-08

    Request a quote
    Weight (kg)
    20.9
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    96.5
    Max deflection · Compression (mm)
    67.3
    Max deflection · Shear (mm)
    71.1

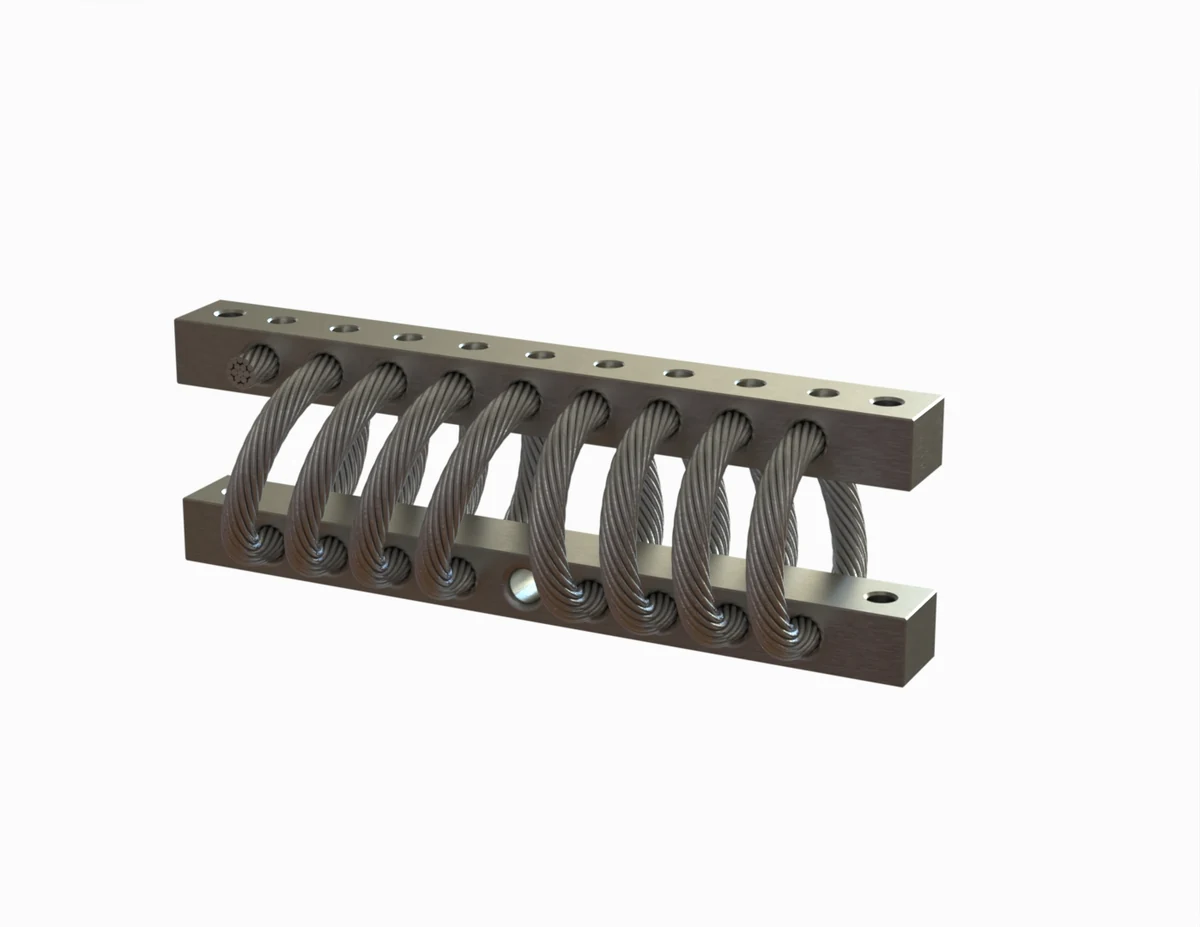

  • View representative rendering in a new tab: OVTW286-40-08

    OVTW286-40-08

    Request a quote
    Weight (kg)
    24.0
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    144.8
    Max deflection · Compression (mm)
    102.9
    Max deflection · Shear (mm)
    108

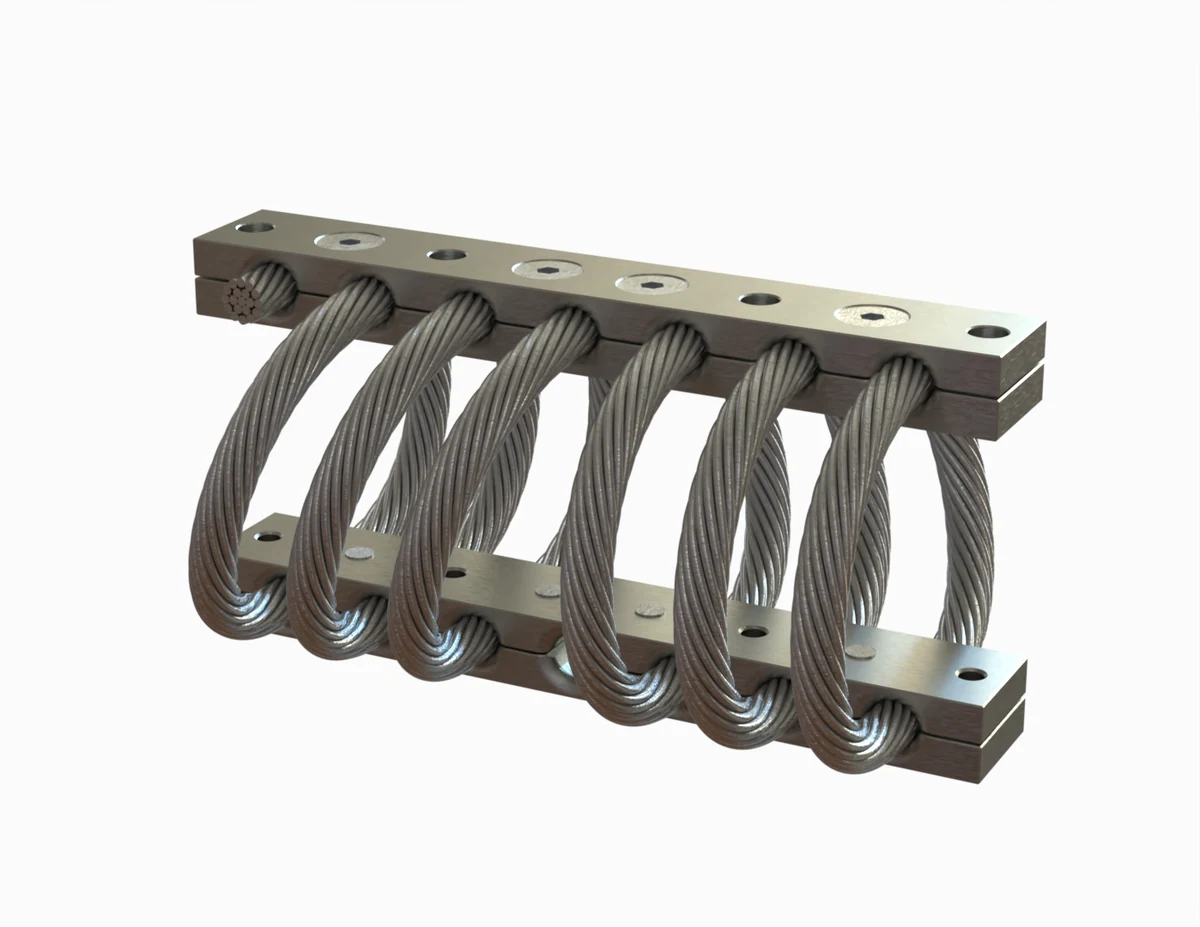

  • View representative rendering in a new tab: OVTW286-60-08

    OVTW286-60-08

    Request a quote
    Weight (kg)
    25.0
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    168.9
    Max deflection · Compression (mm)
    119.4
    Max deflection · Shear (mm)
    125.7

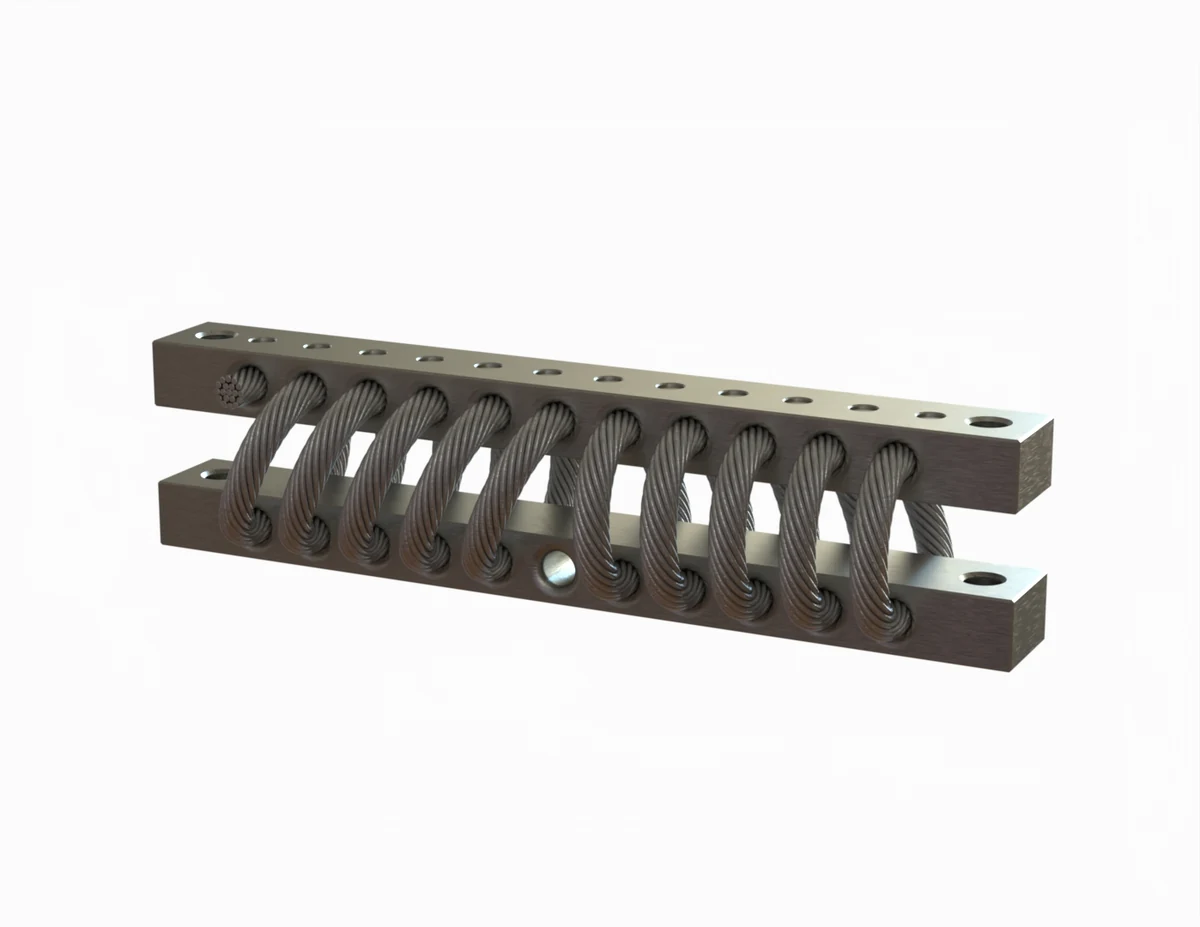

  • View representative rendering in a new tab: OVTW318-20-08

    OVTW318-20-08

    Request a quote
    Weight (kg)
    24.0
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    96.5
    Max deflection · Compression (mm)
    67.3
    Max deflection · Shear (mm)
    71.1
  • View representative rendering in a new tab: OVTW318-40-08

    OVTW318-40-08

    Request a quote
    Weight (kg)
    27.2
    Damping ratio (C/Cc)
    0.2
    Max deflection · Angled (mm)
    137.2
    Max deflection · Compression (mm)
    96.5
    Max deflection · Shear (mm)
    101.6

Construction and operating principle

Stranded steel cable deforms between mounting bars. Friction between the strands dissipates energy; stiffness varies with displacement and load direction.

Applications and selection

Equipment vibration isolation and transport protection. Specify the supported load, mounting direction, available travel and shock environment.

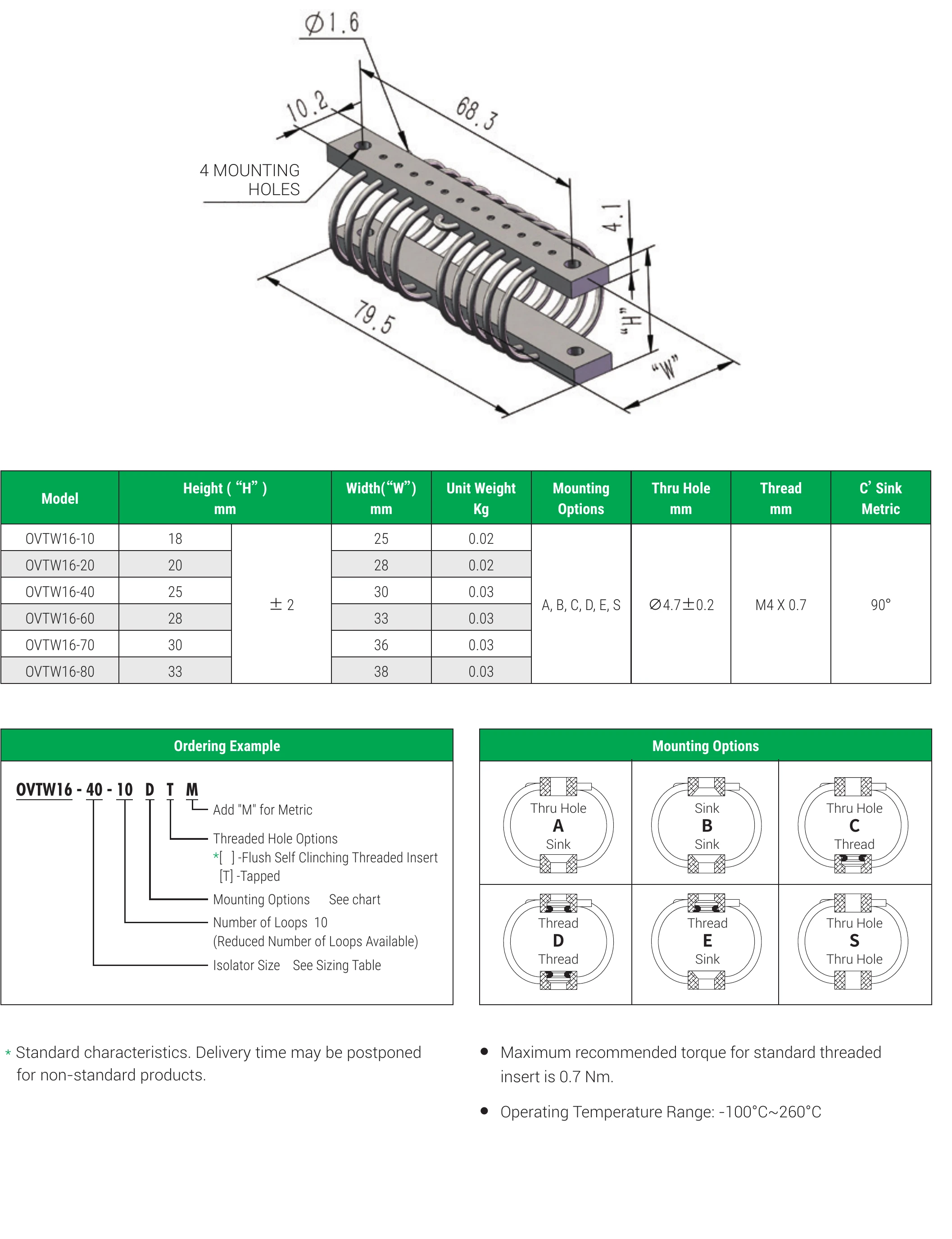

OVTW16 dimensions and mounting choices

Catalogue dimensions, ordering suffixes and mounting choices for OVTW16 only. Use the model table for OVTW16-10 through OVTW16-80; this drawing is not a whole-series OVTW substitute.

Vibration Isolator 2024 · PDF pages 7

OVTW16 dimensions and mounting choices

Technical reference: Chinese product catalogue · PDF pages 9, 10, 11
